Stop SQL Server Crashes: Why ZappySys Data Gateway Beats ODBC Linked Servers

Is your SQL Server crashing under heavy data load? If you are using Linked Servers with third-party ODBC drivers via MSDASQL, you are unknowingly putting your entire database environment at risk.

The Root Cause: In-Process Driver Risks

When you configure a Linked Server using the OLE DB Provider for ODBC (MSDASQL), the third-party driver runs inside the SQL Server process (sqlservr.exe). This is the “In-Process” model, and it has significant architectural flaws:

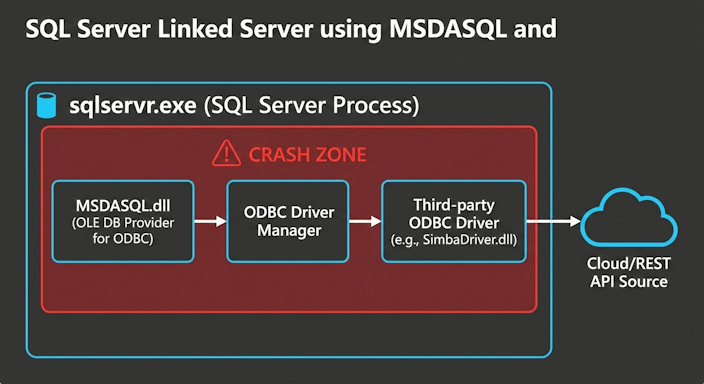

SQL Server Linked Server ODBC Crash Zone

• Memory Contention: The driver shares SQL Server’s memory heap, meaning driver memory leaks directly starve the SQL Buffer Pool.
• Unmanaged Code: You are executing third-party native code directly inside the database engine.
• The Fatal Crash: If the driver hits an access violation (error 0xc0000005), it kills the entire sqlservr.exe process, taking all databases offline.

The “Zero-Touch” Remote Isolation Model

ZappySys Data Gateway introduces Process Isolation. Instead of installing risky drivers on your production database host, you can run the Gateway on a Remote PC or dedicated App Server.

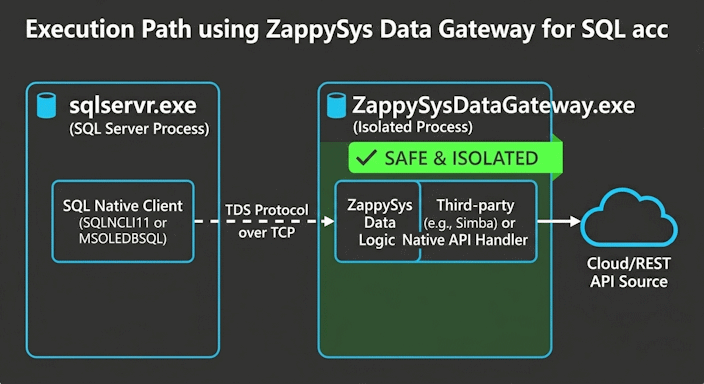

Architectural diagram of ZappySys Data Gateway using TDS protocol to provide safe, out-of-process data integration for SQL Server.

• No Drivers on SQL Server: You never have to touch your SQL Server machine or install third-party .dll files on it.
• Native TDS Communication: SQL Server communicates with the Gateway using the standard, Microsoft-hardened TDS protocol.
• Engine Stability: If a cloud API failure or driver bug occurs, it happens in the isolated ZappySysGateway.exe process—SQL Server stays online.

Supported Connectors via ZappySys Integration Hub

ZappySys provides a secure, out-of-process bridge for hundreds of modern data sources.

Native API & Cloud Connectors

• CRM/ERP: Salesforce, Dynamics 365, HubSpot, ServiceNow, Zoho CRM.
• Marketing: Amazon Ads, Google Ads, Google Search Console, Mailchimp.
• Collaboration: SharePoint Online, Google Sheets, Jira, Azure DevOps, OneDrive.

Big Data & NoSQL (Safe JDBC Bridge)

Systems using Java-based drivers run safely within the Gateway process, preventing JDBC memory overhead from affecting SQL Server:

• Sources: Google BigQuery, Amazon Athena, MongoDB, Infor Data Lake, Cosmos DB.

Side-by-Side Comparison

Summary: Protect Your Production Uptime

A driver bug should fail a query—it should never crash your production database engine. ZappySys Data Gateway provides the architectural “firewall” your infrastructure deserves.
