What is SOAP Web Service?

If you are new to SOAP Web Service sometimes referred as XML Web Service then please read some concept about SOAP Web service standard from this link

There are two important aspects in SOAP Web service.

1. Getting WSDL file or URL
2. Knowing exact Web Service URL

What is WSDL

In very simple term WSDL (often pronounced as whiz-dull) is nothing but a document which describes Service metadata (e.g. Functions you can call, Request parameters, response structure etc). Some service simply give you WSDL as xml file you can download on local machine and then analyze or sometimes you may get direct URL (e.g. http://api.mycompany.com/hr-soap-service/?wsdl )

What is Service URL

Service URL is actual API URL you can call to get data. When you make a request to SOAP service url make sure following things.

1. Use correct service URL (Its not same as WSDL url). If you are not sure about service URL contact API vendor or refer API documentation.
2. Each service call you have to supply function you want to call. This can be done in 3 different ways.
   1. Pass via SOAPAction HTTP Header
   2. Pass via Url parameter or Url Path (http://myserver/service/function1  — http://myserver/service/?method=function1 )
   3. Pass via Request BODY
3. Find out how to pass credentials. It can be done via Basic Authorization or WSS Security Header in the Request body. Check this link to learn more

Using SoapUI to test SOAP API call / Create Request Body XML

If you do not have WSDL file or URL handy then contact your API provider (sometimes you just have to add ?wsdl at the end of your Service URL to get WSDL so try that. Example: http://mycompany/myservice?wsdl ). If you don't know what is WSDL then in short, WSDL is Web service Description Language (i.e. XML file which describes your SOAP Service). WSDL helps to craft SOAP API request Body for ZappySys XML Driver. So Let's get started.

1. Download and Install SoapUI (It’s a Free tool to test SOAP / REST Services)
2. Open SoapUI and click SOAP button to create new SOAP Project
3. Enter WSDL URL or File Path of WSDLFor example WSDL for our sample service can be accessed via this URL

   http://www.holidaywebservice.com/HolidayService_v2/HolidayService2.asmx?wsdl


   Create new SOAP API Project in SoapUI tool for SOAP API Testing
4. Once WSDL is loaded you will see possible operations you can call for your SOAP Web Service.
5. If your web service requires credentials then you have to configure it. There are two common credential types for public services (SOAP WSS or BASIC )
   1. To use SOAP WSS Credentials select request node and enter UserId, Password, and WSS-PasswordType (PasswordText or PasswordHash)

      Configure SOAP WSS Credentials for SoapUI (SOAP API Testing Tool)
   2. To use BASIC Auth Credentials select request node and double-click it. At the bottom click on Auth (Basic) and From Authorization dropdown click Add New and Select Basic.
      Configure Basic Authorization for SoapUI (SOAP API Testing Tool)
6. Now you can test your request first Double-click on the request node to open request editor.
7. Change necessary parameters, remove optional or unwanted parameters. If you want to regenerate request you can click on Recreate default request toolbar icon.
   Create SOAP Request XML (With Optional Parameters)
8. Once your SOAP Request XML is ready, Click the Play button in the toolbar to execute SOAP API Request and Response will appear in Right side panel.
   Test SOAP API using SoapUI Tool (Change Default XML Body / Parameters, Execute and See Response)

Once you have tested your SOAP API in SoapUI tool, we are ready to use ZappySys SSIS Tasks/Components or ODBC Drivers to call SOAP API in SSIS or your preferred BI tool or Programming language.

Create Data Source in ZappySys Data Gateway based on XML Driver

1. Download and install ZappySys ODBC PowerPack.

2. Search for gateway in start menu and Open ZappySys Data Gateway:


3. Go to Users Tab to add our first Gateway user. Click Add; we will give it a name tdsuser and enter password you like to give. Check Admin option and click OK to save. We will use these details later when we create linked server:


4. Now we are ready to add a data source. Click Add, give data source a name (Copy this name somewhere, we will need it later) and then select Native - ZappySys XML Driver. Finally, click OK. And it will create the Data Set for it and open the ZS driver UI.



5. Configure API URL, Request Method and Request Body as below screen. Select Url or File and paste the following Url for this example OR you can load existing connection string as per this article.



   NOTE: Here i am using demo SOAP API URL, but you need to refer your own API documentation and based on that you need to use your own API URL and need to configure connection based on API Authentication type.
   http://www.holidaywebservice.com/HolidayService_v2/HolidayService2.asmx?wsdl




   ZappySys XML Driver - Calling SOAP API - Configure URL, Method, Body

6. (This step is Optional) If your SOAP API requires credentials then Select Connection Type to HTTP and configure as below.



   ZappySys XML Driver - Configure SOAP WSS Credentials or Basic Authorization (Userid, Password)

7. Configure-Request Headers as below (You can get it from Request > Raw tab from SoapUI after you test the request by clicking the Play button)



   Configure SOAP API Request Headers - ZappySys XML Driver

8. Once credentials entered you can select Filter to extract data from the desired node. Make sure to select array node (see special icon) or select the node which contains all necessary columns if you don't have array node.



   Select Filter - Extract data from nested XML / SOAP API Response (Denormalize Hierarchy)

9. If prompted select yes to treat selected node as Array (This is helpful when you expect one or more record for selected node)



   Treat selected node as XML Array Option for SOAP API Response XML

10. Once the data source has been configured, Go to Preview tab and click on preview data to view the data.

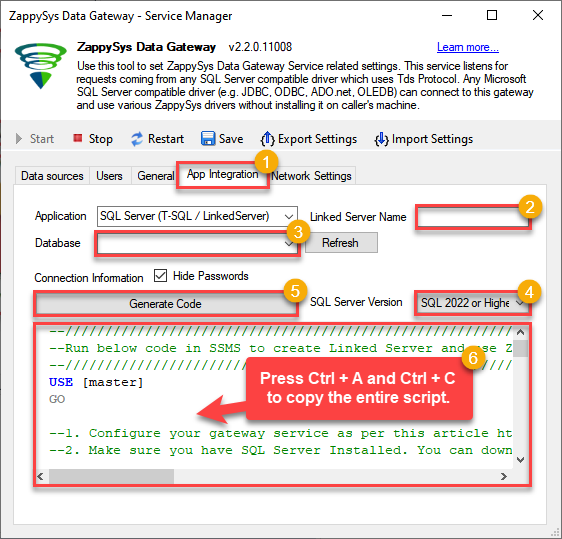

    You can create the default query, generated based on settings you entered in previous sections also, by using Query Builder. Attributes listed in WITH clause are optional. If you omit attribute in WITH clause it will use it from Properties tab.



    Preview SOAP API Response in ZappySys XML Driver

11. Click OK to finish creating the data source.

12. That's it; we are done. In a few clicks we configured the call to SOAP API using ZappySys SOAP Connector.

Read data in SQL Server from the ZappySys Data Gateway

1. To read the data in SQL Server the first thing you have to do is create a Linked Server. Go to SQL Server Management Studio and configure it in a similar way:


2. Then click on Security option and configure username we created in ZappySys Data Gateway in one of the previous steps:


3. Optional: Under the Server Options, Enable RPC and RPC Out and Disable Promotion of Distributed Transactions(MSDTC).



   ---

   You need to enable RPC Out if you plan to use EXEC(...) AT [MY_LINKED_SERVER_NAME] rather than OPENQUERY.
   If don't enabled it, you will encounter the Server 'MY_LINKED_SERVER_NAME' is not configured for RPC error.

   Query Example:

   EXEC('Select * from Products') AT [MY_LINKED_SERVER_NAME]

   ---

   If you plan to use 'INSERT INTO...EXEC(....) AT [MY_LINKED_SERVER_NAME]' in that case you need to Disable Promotion of Distributed Transactions(MSDTC).
   If don't disabled it, you will encounter the The operation could not be performed because OLE DB provider "SQLNCLI11" for linked server "MY_LINKED_SERVER_NAME" was unable to begin a distributed transaction. error.

   Query Example:

   Insert Into dbo.Products
    EXEC('Select * from Products') AT [MY_LINKED_SERVER_NAME]


   ---

4. Finally, open a new query and execute a query we saved in one of the previous steps:


   SELECT * FROM OPENQUERY([MY_LINKED_SERVER_NAME], 'SELECT * FROM Products');



Create Linked Server using Code

In previous section you saw how to create a Linked Server from UI. You can do similar action by code too (see below). Run below script after changing necessary parameters. Assuming your Data Source name on ZappySys Data Gateway UI is 'SoapapiDSN'

    USE [master]
    GO
    --///////////////////////////////////////////////////////////////////////////////////////
    --Run below code in SSMS to create Linked Server and use ZappySys Drivers in SQL Server
    --///////////////////////////////////////////////////////////////////////////////////////

    //Replace YOUR_GATEWAY_USER, YOUR_GATEWAY_PASSWORD
    //Replace localhost with IP/Machine name if ZappySys Gateway Running on different machine other than SQL Server
    //Replace Port 5000 if you configured gateway on a different port


    --1. Configure your gateway service as per this article https://zappysys.com/links?id=10036

    --2. Make sure you have SQL Server Installed. You can download FREE SQL Server Express Edition from here if you dont want to buy Paid version https://www.microsoft.com/en-us/sql-server/sql-server-editions-express

    --Uncomment below if you like to drop linked server if it already exists
    --EXEC master.dbo.sp_dropserver @server=N'LS_SoapapiDSN', @droplogins='droplogins'

    --3. Create new linked server

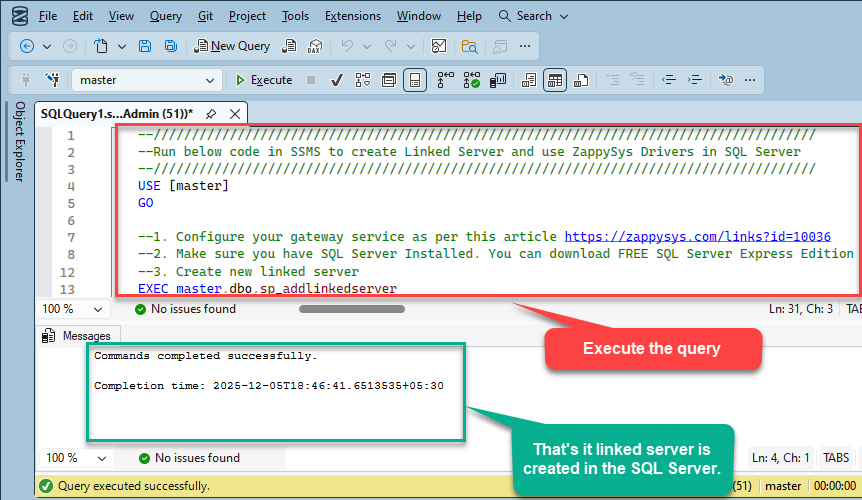

    EXEC master.dbo.sp_addlinkedserver
      @server = N'LS_SoapapiDSN'  --Linked server name (this will be used in OPENQUERY sql
    , @srvproduct=N''
    ---- For MSSQL 2012,2014,2016 and 2019 use below (SQL Server Native Client 11.0)---
    , @provider=N'SQLNCLI11'
    ---- For MSSQL 2022 or higher use below (Microsoft OLE DB Driver for SQL Server)---
    --, @provider=N'MSOLEDBSQL'
    , @datasrc=N'localhost,5000' --//Machine / Port where Gateway service is running
    , @provstr=N'Network Library=DBMSSOCN;'
    , @catalog=N'SoapapiDSN' --Data source name you gave on Gateway service settings

    --4. Attach gateway login with linked server

    EXEC master.dbo.sp_addlinkedsrvlogin
    @rmtsrvname=N'LS_SoapapiDSN'  --linked server name
    , @useself=N'False'
    , @locallogin=NULL

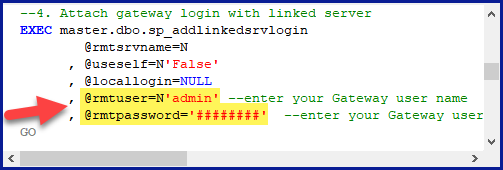

    , @rmtuser=N'YOUR_GATEWAY_USER' --enter your Gateway user name
    , @rmtpassword='YOUR_GATEWAY_PASSWORD'  --enter your Gateway user's password
    GO

    --5. Enable RPC OUT (This is Optional - Only needed if you plan to use EXEC(...) AT YourLinkedServerName rather than OPENQUERY
    EXEC sp_serveroption 'LS_SoapapiDSN', 'rpc', true;
    EXEC sp_serveroption 'LS_SoapapiDSN', 'rpc out', true;

    --Disable MSDTC - Below needed to support INSERT INTO from EXEC AT statement
    EXEC sp_serveroption 'LS_SoapapiDSN', 'remote proc transaction promotion', false;

    --Increase query timeout if query is going to take longer than 10 mins (Default timeout is 600 seconds)
    --EXEC sp_serveroption 'LS_SoapapiDSN', 'query timeout', 1200;
    GO

Create View in SQL Server

Finally, use this or similar query in a view or stored procedure, which you will be able to use in Tableau. We will create a view to return invoices:

1. CREATE VIEW vwApiInvoices AS
    SELECT * FROM OPENQUERY([MY_LINKED_SERVER_NAME], 'SELECT * FROM Invoices')

Read data in Tableau from SQL Server

Actually, we will be getting data from SQL Server which in turn will be getting data from ZappySys Data Gateway data source. Let's begin and see how to accomplish that:

1. Open Tableau Desktop and click File > New
2. To create new Connection click More > Microsoft SQL Server > Enter your credentials to connect to SQL Server (in our example before we used tdsuser):
3. Once connection is created for SQL Server we can read SOAP API data 3 different ways:
   1. Query View which contains OPENQUERY to Linked Server for SOAP API data
   2. Use direct SQL Query using OPENQUERY
   3. Use Stored Procedure (Mostly useful to parameterize calls
4. See below example to pull data from SOAP API in Tableau using SQL View approach:
5. Once your data sources are created you can click on Sheet1 and drag fields to create visualizations for Tableau Dashboard:

Passing Parameters to SOAP API calls in Tableau (Dynamic SQL)

Now let's look at scenario where you have to pass parameters to build Dynamic Dashboard. You can try to insert Parameters in your Direct SQL when you build Dynamic SQL but we found some issues with that so we are going to suggest Stored Procedure approach. For more information on Known issue on Dynamic Metadata Check this post.

1. First lets create a stored procedure in SQL Server for Parameter Example. Notice how we added WITH RESULT SETS in the code to describe metadata.

   --DROP PROC dbo.usp_GetInvoicesByCountry
   --GO
   /*
   Purpose: Parameterize SOAP API call via SQL. Call ZappySys Drivers inside SQL Server.
   */
   CREATE PROC dbo.usp_GetInvoicesByCountry
   	@country varchar(100)
   AS

   DECLARE @sql varchar(max)
   --//Escape single ticks carefully
   SET @sql =  'SELECT OrderID,CustomerID,Country,Quantity FROM $
   WITH (Src=''https://services.odata.org/V3/Northwind/Northwind.svc/Invoices?$format=json@filter=Country eq '+ @country +'''
   	 ,Filter=''$.value[*]''
   	 ,DataFormat=''OData''
   )'

   DECLARE @sqlFull varchar(max)
   SET @sqlFull='SELECT * FROM OPENQUERY( [LS] , ''' + REPLACE( @sql, '''', '''''' ) + ''' )'
   PRINT @sqlFull --//For DEBUG purpose

   EXECUTE (@sqlFull)
   WITH RESULT SETS (
    (OrderID int,CustomerID varchar(100),Country varchar(100),Quantity int) --//describe first result. If you don't do this then wont work in Tableau
   )
   GO
   -- Example call
   EXEC dbo.usp_GetInvoicesByCountry @country='Germany'

2. Once you create a stored procedure go to Tableau datasource and select Database which contains the stored procedure we just created.
3. Now find your stored proc and drag it on the datasource pane. You will see parameters UI as below. You can create new parameter - Select New Parameter under Value Column.
4. Thats it now you can reuse your parameterized datasource anywhere in Dashboard.
5. If you have need to select Parameters from predefined values rather than free text then edit your parameter and select List option. Define values you like to select from as below.
6. When you create Tableau Dashboard you will see Parameter dropdown (If you selected List) elase you may see Textbox to enter custom value.

Firewall settings

So far we have assumed that Gateway is running on the same machine as SQL Server. However there will be a case when ZappySys ODBC PowerPack is installed on a different machine than SQL Server. In such case you may have to perform additional Firewall configurations. On most computers firewall settings wont allow outside traffic to ZappySys Data Gateway. In such case perform following steps to allow other machines to connect to Gateway.

Method-1 (Preferred)

If you are using newer version of ZappySys Data Gateway then adding firewall rule is just a single click.

1. Search for gateway in start menu and open ZappySys Data Gateway.
2. Go to Firewall Tab and click Add Firewall Rule button like below. This will create Firewall rule to all Inbound Traffic on Port 5000 (Unless you changed it).

Method-2 Here is another way to add / edit Inbound Traffic rule in windows firewall. Use below method if you choose to customize your rule (for advanced users).

1. Search for Windows Firewall Advanced Security in start menu.
2. Under Inbound Rules > Right click and click [New Rule] >> Click Next
3. Select Port on Rule Type >> Click Next
4. Click on TCP and enter port number under specified local port as 5000 (use different one if you changed Default port) >> Click Next
5. Select Profile (i.e. Private, Public) >> Click Next
6. Enter Rule name [i.e. ZappySys Data Gateway – Allow Inbound ] >> Click Next
7. Click OK to save the rule

Configuring pagination in the XML Driver

ZappySys XML Driver equips users with powerful tools for seamless data extraction and management from REST APIs, leveraging advanced pagination methods for enhanced efficiency. These options are designed to handle various types of pagination structures commonly used in APIs. Below are the detailed descriptions of these options:

1. Page-based Pagination: This method works by retrieving data in fixed-size pages from the Rest API. It allows you to specify the page size and navigate through the results by requesting different page numbers, ensuring that you can access all the data in a structured manner.

2. Offset-based Pagination: With this approach, you can extract data by specifying the starting point or offset from which to begin retrieving data. It allows you to define the number of records to skip and fetch subsequent data accordingly, providing precise control over the data extraction process.

3. Cursor-based Pagination: This technique involves using a cursor or a marker that points to a specific position in the dataset. It enables you to retrieve data starting from the position indicated by the cursor and proceed to subsequent segments, ensuring that you capture all the relevant information without missing any records.

4. Token-based Pagination: In this method, a token serves as a unique identifier for a specific data segment. It allows you to access the next set of data by using the token provided in the response from the previous request. This ensures that you can systematically retrieve all the data segments without duplication or omission.

Utilizing these comprehensive pagination features in the ZappySys XML Driver facilitates efficient data management and extraction from REST APIs, optimizing the integration and analysis of extensive datasets.

For more detailed steps, please refer to this link: How to do REST API Pagination in SSIS / ODBC Drivers

Authentication

ZappySys offers various authentication methods to securely access data from various sources. These authentication methods include OAuth, Basic Authentication, Token-based Authentication, and more, allowing users to connect to a wide range of data sources securely.

ZappySys Authentication is a robust system that facilitates secure access to data from a diverse range of sources. It includes a variety of authentication methods tailored to meet the specific requirements of different data platforms and services. These authentication methods may involve:

1. OAuth: ZappySys supports OAuth for authentication, which allows users to grant limited access to their data without revealing their credentials. It's commonly used for applications that require access to user account information.

2. Basic Authentication: This method involves sending a username and password with every request. ZappySys allows users to securely access data using this traditional authentication approach.

3. Token-based Authentication: ZappySys enables users to utilize tokens for authentication. This method involves exchanging a unique token with each request to authenticate the user's identity without revealing sensitive information.

By implementing these authentication methods, ZappySys ensures the secure and reliable retrieval of data from various sources, providing users with the necessary tools to access and integrate data securely and efficiently. For more comprehensive details on the authentication process, please refer to the official ZappySys documentation or reach out to their support team for further assistance.

For more details, please refer to this link: ZappySys Connections

Advanced topics

Create Custom Stored Procedure in ZappySys Driver

You can create procedures to encapsulate custom logic and then only pass handful parameters rather than long SQL to execute your API call.

Steps to create Custom Stored Procedure in ZappySys Driver. You can insert Placeholders anywhere inside Procedure Body. Read more about placeholders here

1. Go to Custom Objects Tab and Click on Add button and Select Add Procedure:


2. Enter the desired Procedure name and click on OK:


3. Select the created Stored Procedure and write the your desired stored procedure and Save it and it will create the custom stored procedure in the ZappySys Driver:
   Here is an example stored procedure for ZappySys Driver. You can insert Placeholders anywhere inside Procedure Body. Read more about placeholders here


   CREATE PROCEDURE [usp_get_orders]
       @fromdate = '<<yyyy-MM-dd,FUN_TODAY>>'
    AS
       SELECT * FROM Orders where OrderDate >= '<@fromdate>';





4. That's it now go to Preview Tab and Execute your Stored Procedure using Exec Command. In this example it will extract the orders from the date 1996-01-01:


   Exec usp_get_orders '1996-01-01';




5. Let's generate the SQL Server Query Code to make the API call using stored procedure. Go to Code Generator Tab, select language as SQL Server and click on Generate button the generate the code.
   As we already created the linked server for this Data Source, in that you just need to copy the Select Query and need to use the linked server name which we have apply on the place of [MY_API_SERVICE] placeholder.


   SELECT * FROM OPENQUERY([MY_API_SERVICE], 'EXEC usp_get_orders @fromdate=''1996-07-30''')




6. Now go to SQL served and execute that query and it will make the API call using stored procedure and provide you the response.


Create Custom Virtual Table in ZappySys Driver

ZappySys API Drivers support flexible Query language so you can override Default Properties you configured on Data Source such as URL, Body. This way you don't have to create multiple Data Sources if you like to read data from multiple EndPoints. However not every application support supplying custom SQL to driver so you can only select Table from list returned from driver.

If you're dealing with Microsoft Access and need to import data from an SQL query, it's important to note that Access doesn't allow direct import of SQL queries. Instead, you can create custom objects (Virtual Tables) to handle the import process.

Many applications like MS Access, Informatica Designer wont give you option to specify custom SQL when you import Objects. In such case Virtual Table is very useful. You can create many Virtual Tables on the same Data Source (e.g. If you have 50 URLs with slight variations you can create virtual tables with just URL as Parameter setting.

1. Go to Custom Objects Tab and Click on Add button and Select Add Table:


2. Enter the desired Table name and click on OK:


3. And it will open the New Query Window Click on Cancel to close that window and go to Custom Objects Tab.

4. Select the created table, Select Text Type AS SQL and write the your desired SQL Query and Save it and it will create the custom table in the ZappySys Driver:
   Here is an example SQL query for ZappySys Driver. You can insert Placeholders also. Read more about placeholders here


   SELECT
     "ShipCountry",
     "OrderID",
     "CustomerID",
     "EmployeeID",
     "OrderDate",
     "RequiredDate",
     "ShippedDate",
     "ShipVia",
     "Freight",
     "ShipName",
     "ShipAddress",
     "ShipCity",
     "ShipRegion",
     "ShipPostalCode"
   FROM "Orders"
   Where "ShipCountry"='USA'




5. That's it now go to Preview Tab and Execute your custom virtual table query. In this example it will extract the orders for the USA Shipping Country only:


   SELECT * FROM "vt__usa_orders_only"




6. Let's generate the SQL Server Query Code to make the API call using stored procedure. Go to Code Generator Tab, select language as SQL Server and click on Generate button the generate the code.
   As we already created the linked server for this Data Source, in that you just need to copy the Select Query and need to use the linked server name which we have apply on the place of [MY_API_SERVICE] placeholder.


   SELECT * FROM OPENQUERY([MY_API_SERVICE], 'EXEC [usp_get_orders] ''1996-01-01''')




7. Now go to SQL served and execute that query and it will make the API call using stored procedure and provide you the response.


Conclusion

In this article we discussed how to connect to SOAP API in Tableau and integrate data without any coding. Click here to Download SOAP API Connector for Tableau and try yourself see how easy it is. If you still have any question(s) then ask here or simply click on live chat icon below and ask our expert (see bottom-right corner of this page).

Download SOAP API Connector for Tableau Documentation

More integrations

Other application integration scenarios for SOAP API

Other connectors for Tableau

Download SOAP API Connector for Tableau Documentation

Common Searches:
