ODBC PowerPack v1.2 release brought an interesting feature for all API drivers. New version gives you an ability to create Custom Objects. You can create parameterized Stored Procedure and Virtual Tables on the same Data Source (ODBC DSN or Data Gateway Data Source). For more information you see here

Custom Objects

There are mainly 3 types of custom objects you can create using ZappySys Drivers.

Custom Stored Procedure

You can create procedures to encapsulate custom logic and then only pass handful parameters rather than long SQL to execute your API call.

ZappySys ODBC Driver – Custom Objects – New Stored Procure

Stored Procedure with Parameters

Here is an example stored procedure for JSON Driver. You can insert Placeholders anywhere inside Proc Body. Read more about placeholders here

CREATE PROCEDURE usp_UploadData
 @file='test.json',
 @source='HRApp'
AS
SELECT * FROM $
WITH
(METHOD='POST', HEADER='Content-Type: text/plain || x-hdr1: AAA'
,SRC='http://httpbin.org/post?src=<@source>&timestamp=<<FUN_TODAY>>'
,BODY='@c:\files\<@file,FUN_TRIM>'
,IsMultiPart='True'
)

To call stored procedure from client app using below SQL. Must prefix EXEC proc_name [parameter values….]

EXEC usp_UploadData 'Jan_data1.json' , 'HRApp'

Stored Procedure without Parameters

Using Functions in Stored Procedure

ZappySys provides many functions which can be used as placeholder anywhere inside Stored Proc code or in your SQL query for Driver

Example of simple function (No parameter)

CREATE PROCEDURE usp_OrdersByCountry
 @country='INDIA' --always supply some default parameter so metadata can be guessed
AS
SELECT * FROM Orders
WHERE Country='<@country,FUN_TRIM>')

Example of function with parameters

In below example we have invoked function after we replaced parameter. Our function FUN_TO_DATE has 2 parameters (actual date value and format we want to output). This way we can control replacement order

CREATE PROCEDURE usp_OrdersByDate
 @orderdate='2012-01-01'  --always supply some default parameter so metadata can be guessed
AS
SELECT * FROM Orders
WHERE OrderDate=DATETIME('<<<@orderdate>||yyyy-MM-dd,FUN_TO_DATE>>')

Virtual Table – Connection String Mode

ZappySys Drivers support flexible Query language so you can override Default Properties you configured on Data Source such as URL, Body. This way you dont have to create multiple Data Sources if you like to read data from multiple EndPoints. However not every application support supplying custom SQL to driver so you can only select Table from list returned from driver.

Many applications like MS Access, Informatica Designer wont give you option to specify custom SQL when you import Objects. In such case Virtual Table is very useful. You can create many Virtual Tables on the same Data Source (e.g. If you have 50 URLs with slight variations you can create virtual tables with just URL as Parameter setting.

vt__Accounts
DataPath=http://mycompany/api/customers

vt__Leads
DataPath=http://mycompany/api/leads

vt__Contacts
DataPath=http://mycompany/api/contacts

All Virtual Tables will be listed along with Other Tables returned by your Data Source from Response.

Virtual Table – SQL Mode (v1.6 or higher)

Version 1.6+ introduced new mode to create Virtual Table. Now you can write custom SQL just like a View in Relational DB.

See below example

Virtual Table Use Cases

Now lets look at a few real world use cases where Virtual Tables might be useful. You can use when your Client Application doesn’t have support to connect to ODBC in SQL Query mode and only allows Table selection / import.

MS Access – Import Tables

If you are using ZappySys ODBC Driver to integrate API in MS Access then Virtual Tables are useful because MS Access only allows to choose Tables when you import and no place to enter custom Query.

Importing Virtual Tables in MS Access (JSON REST API Example)

Informatica – Import Tables (Create Source / Target Schema from ODBC DSN)

Here is another use case of informatica rest / json api integration. Informatica doesnt allow to import SQL Query structure so you must choose exposed tables. Using Virtual Tables feature you can import multiple tables from Same ODBC DSN

Select JSON Source Table in Informatica Mapping Designer (JSON file or REST API)

Preview Data

Once virtual tables are defined you can go to preview tab and it will show entries there regardless your Data Source settings on main UI.

Query Virtual Table – Preview Data

The post Using Custom Objects in ZappySys Drivers (Proc / View) appeared first on ZappySys Blog.

In our previous blog we saw how update / insert data into SQL Server using SSIS Upsert Destination. In this post we will look at specific example on Data migration from Access to Amazon Redshift using SSIS Upsert Destination (Insert, Update, Delete), along with few other topics such as how to create table using Upsert Destination. how to read all Customers data from Ms Access Table and Merge it in the Amazon Redshift.

We will go through the steps to read data from Access and Load into Amazon Redshift.

In nutshell, this post will focus on how to read access table data in SSIS.

So let’s get started.

Requirements

1. First, you will need to have SSIS installed
2. Secondly, make sure to have SSDT
3. Thirdly, do not forget to install ZappySys SSIS PowerPack
4. Finally, Make sure that Microsoft Access installed.

How to Read MS Access table data and migrate that data in Amazon Redshift table.

Let´s start with an example. In this article we will see Data migration from Access to Amazon Redshift.

1. First of All, Drag and drop Data Flow Task from SSIS Toolbox and double click it to edit.


   Drag and Drop : SSIS Data Flow Task from SSIS Toolbox

2. Furthermore, drag and drop the OLE DB Source.


   OLE DB Source – Drag and Drop

3. Double click on OLE DB Source for configure it and click on New Connection and configure connection as below to connect access database and click on OK.


   OLE DB : Access Connection

4. Now in OLE DB Source Select the mode as Table or View and select Preview to view the access table data.


   OLE DB Source Preview

5. Now drag and drop Upsert Destination (Insert, Update, Delete) and create connection with Amazon Redshift Database.


   Upsert Destination : Amazon Redshift Connection

6. Now select Action as Sync and check all the checkboxes Insert, Update and Delete from target if not found in source. Select the table and Map all the columns and select the Key field(s) and click on OK.


   Upsert Destination Configuration

7. That’s it we are ready to migrate MS access table data into Amazon Redshift Table. Execute the package and it will migrate the data.


   Upsert Destination (Insert, Update, Delete)

Bulk Update data in Amazon Redshift

So in previous example we saw bulk update or insert (Upsert) in Redshift Table. Now let’s look at how to update data in target table if record exists.

Here is how you can perform bulk update in Amazon Redshift using Upsert Destination.

1. Double click on Upsert Destination for configure it.
2. Set Action Bulk Update => based on matching records on target. Select Connection and Target Table. Click on Map All to Mappings all columns and check on Only Primary Key columns.

3. Thats all, Click on OK to save Upsert Destination settings UI.

Bulk Delete data in Amazon Redshift

Here is how you can bulk delete data in Amazon Redshift.

1. Double click on Upsert Destination for configure it.
2. Set Action Bulk Delete => based on matching records on target. Select Connection and Target Table. Click on Map All to Mappings all columns and check on Only Primary Key columns.

3. Thats all, Click on OK to save Upsert Destination settings UI.

Conclusion

In this article, we show how to read MS Access table data and migrate the data in Amazon Redshift table using SSIS. We show how to do connect access MS Access using OLE DB Source. Also, we show how to write Sync Insert, Update and Delete in target if not found in Source Using ZS Upsert Destination. If you liked this article and you want to try, you can download the SSIS PowerPack from here (includes 70+ Components).

References

• ZappySys SSIS installer.
• Help File: Upsert Destination

The post Merge / Upsert data in Amazon Redshift using SSIS appeared first on ZappySys Blog.

In our previous blog we saw How to perform Upsert (Update or Insert) for SQL Server Table. In this post we will look at specific example on How to Load data into PostgreSQL – Upsert using SSIS Upsert Destination (Insert, Update, Delete), along with few other topics such as how to create target table using Upsert Destination, how to read data from Ms Access Table and Merge into PostgreSQL using SSIS.

We will go through the steps to read data from Access and Load into PostgreSQL – Upsert in SSIS.

In nutshell, this post will focus on how to read access table data in SSIS.

So let’s get started.

Requirements

1. First, you will need to have SSIS installed
2. Secondly, make sure to have SSDT
3. Thirdly, do not forget to install ZappySys SSIS PowerPack
4. Finally, Make sure that Microsoft Access installed.

Read MS Access data and Upsert into PostgreSQL table

Let´s start with an example. In this article we will see Data migration from Access to PostgreSQL.

1. First of All, Drag and drop Data Flow Task from SSIS Toolbox and double click it to edit.


   Drag and Drop : SSIS Data Flow Task from SSIS Toolbox

2. Furthermore, drag and drop the OLE DB Source.


   OLE DB Source – Drag and Drop

3. Double click on OLE DB Source for configure it and click on New Connection and configure connection as below to connect access database and click on OK.


   OLE DB : Access Connection

4. Now in OLE DB Source Select the mode as Table or View and select Preview to view the access table data.


   OLE DB Source Preview

5. Now drag and drop Upsert Destination (Insert, Update, Delete) and create connection with PostgreSQL Database.


   Setup SSIS Upsert Destination for PostgreSQL data load (Bulk Update, Insert, Delete)

6. Now select Action as Sync and check all the checkboxes Insert, Update and Delete from target if not found in source. Select the table and Map all the columns and select the Key field(s) and click on OK.
7. That’s it we are ready to migrate MS access table data into PostgreSQL Table. Execute the package and it will migrate the data.

Conclusion

In this article, we show how to read MS Access table data and migrate the data in PostgreSQL table using SSIS Upsert Destination. We show how to do connect access MS Access using OLE DB Source. Also, we show how to write Sync Insert, Update and Delete in target if not found in Source Using ZS Upsert Destination. If you liked this article and you want to try, you can download the SSIS PowerPack from here (includes 70+ Components).

References

• ZappySys SSIS installer.
• Help File: Upsert Destination

The post Load data into PostgreSQL – Upsert using SSIS (Bulk Update, Insert, Delete) appeared first on ZappySys Blog.

In our previous blog, we saw how to export a REST API to MS Access using a VBA Command Button. In this post, we will look at a specific example of data migration from Access to SQL Server using the SSIS Upsert Destination (Insert, Update, Delete), along with a few other topics, such as how to create a table using the Upsert Destination. How to read all the customer data from the MS Access Table and merge it into the SQL Server.

We will go through the steps to read data from Access and load it into SQL Server.

In a nutshell, this post explains how to read data from an Access table in SSIS.

So let’s get started.

Requirements

1. First, you will need to have SSIS installed
2. Secondly, make sure to have SSDT
3. Thirdly, do not forget to install ZappySys SSIS PowerPack
4. Finally, make sure that Microsoft Access is installed.

How to read MS Access table data and migrate that data to a SQL Server table.

Let´s start with an example. In this article, we will see Data migration from Access to SQL Server.

1. First of all, drag and drop the Data Flow Task from the SSIS Toolbox and double-click it to edit.


   Drag and Drop SSIS Data Flow Task from SSIS Toolbox
2. Furthermore, drag and drop the OLE DB Source.


   OLE DB Source – Drag and Drop

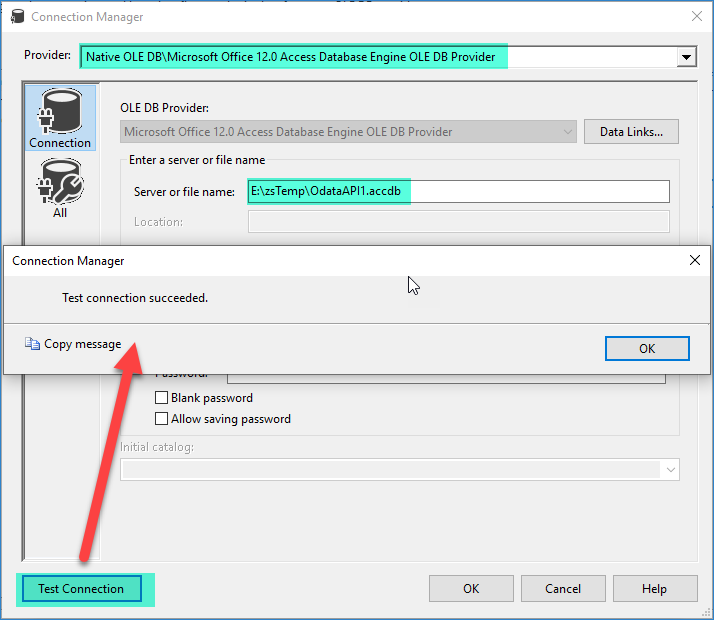

3. Double-click the OLE DB Source to configure it. Click New Connection, configure the connection as shown below to connect to the Access database, and click OK.


   OLE DB Access Connection

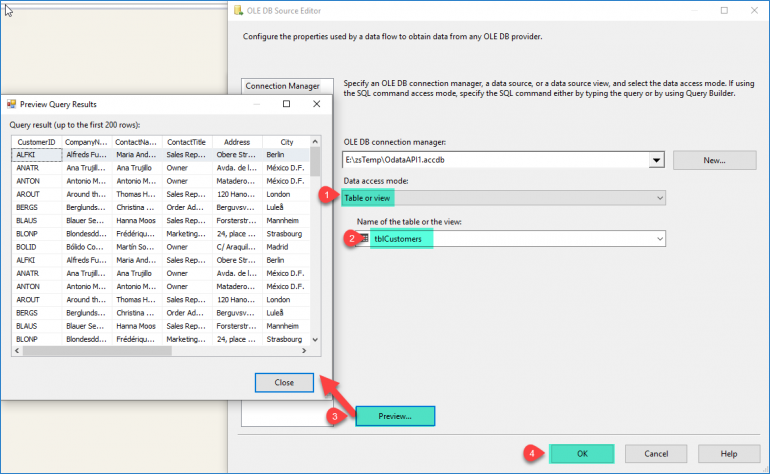

4. Now, in the OLE DB Source, set the mode to Table or View, and select Preview to view the table data.


   OLE DB Source Preview

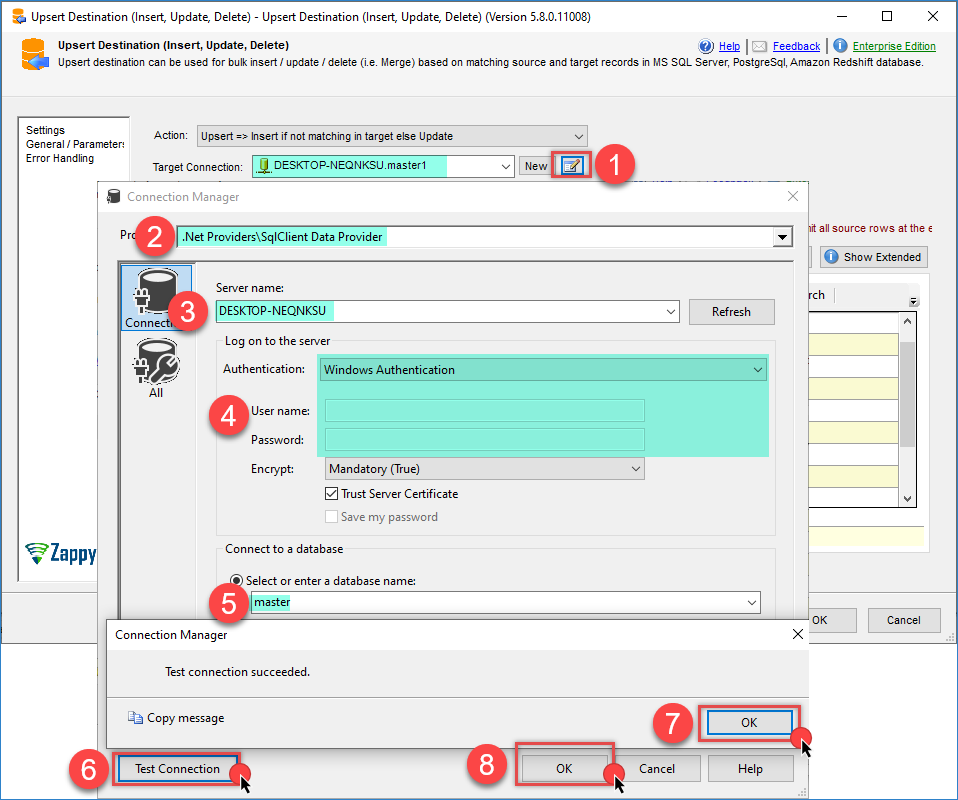

5. Now drag and drop Upsert Destination (Insert, Update, Delete), and create a connection to a SQL Server Database.


   Upsert Destination SQL Server Connection

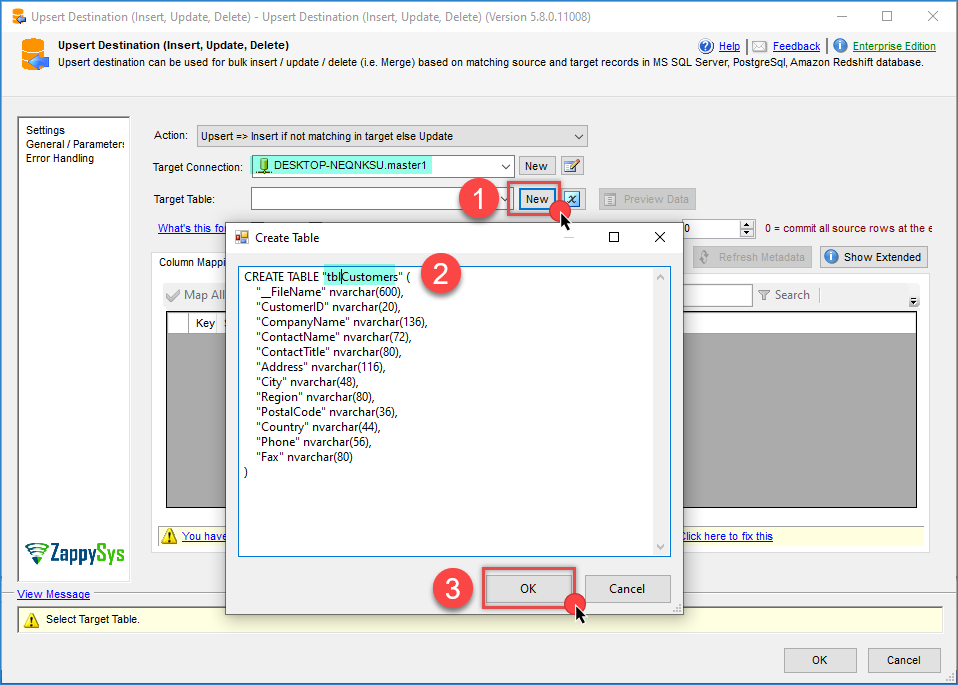

6. Click the New Table button in the Target Table, change the table name, and click OK to create the table in SQL Server.


   Upsert Destination Create Table

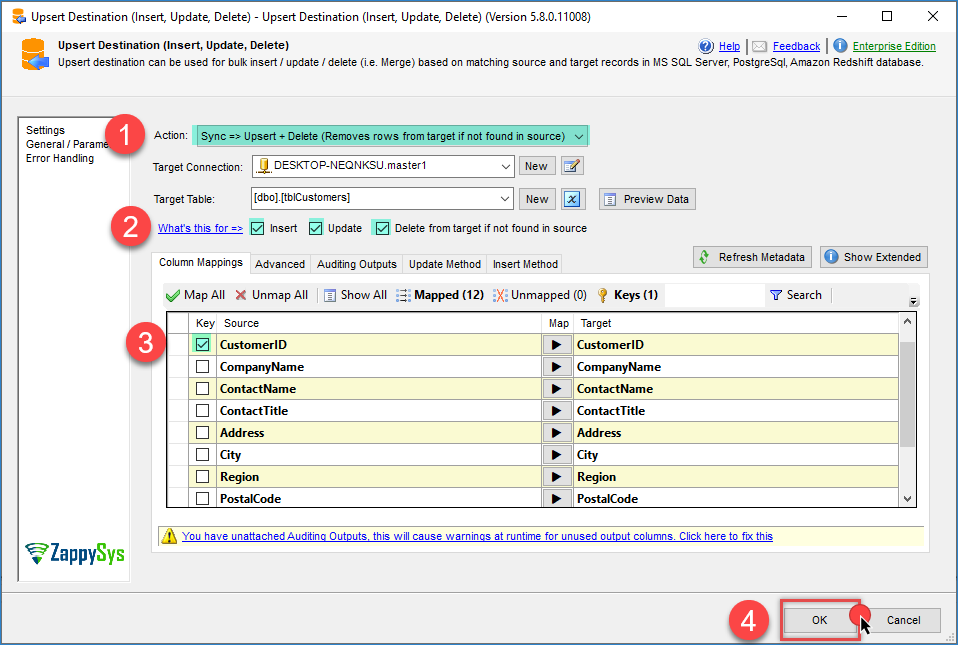

7. Now select Action as Sync and check all the checkboxes: Insert, Update, and Delete from the target if not found in the source. Map all the columns and select the Key field(s) and click on OK.


   Upsert Destination Configuration

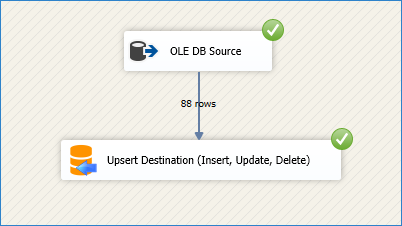

8. That’s it, we are ready to migrate the MS Access table data into the SQL Server Table. Execute the package, and it will migrate the data.


   Upsert Destination (Insert, Update, Delete)

Conclusion

In this article, we show how to read data from an MS Access table and migrate it to a SQL Server table using SSIS. We show how to connect to MS Access using an OLE DB Source. Also, we show how to write Sync Insert, Update, and Delete in the target if not found in the Source Using ZS Upsert Destination. If you liked this article and want to try it, you can download the SSIS PowerPack here (includes 70+ Components).

References

• ZappySys SSIS installer.
• Help File: Upsert Destination

The post Data migration from Access to SQL Server using SSIS Upsert Destination appeared first on ZappySys Blog.

In our previous blog we saw how to read JIRA data in SQL Server. Now let’s learn how to Import SAP S/4HANA OData Service Data Into MS Access. SAP S/4HANA provides OData REST API interface to access data in your application using HTTP Protocol. We will use ODBC XML Driver to read SAP data and load into MS Access.

So, let’s get started.

About SAP HANA / OData REST API Service

You can expose your SAP Data using ODATA REST API Service. Here is a good article which shows how to expose data as OData Service.   For more information on SAP OData Service feature check this SAP help page. If you are new to OData Standard then read here to know more how OData can facilitate data extraction using HTTP REST API. If you need Sample XML based OData Service then use below test URLs.

https://services.odata.org/Northwind/Northwind.svc/
https://services.odata.org/Northwind/Northwind.svc/Customers
https://services.odata.org/Northwind/Northwind.svc/Orders
https://services.odata.org/Northwind/Northwind.svc/Invoices
https://services.odata.org/Northwind/Northwind.svc/Products

Now let’s look at how to read SAP Data using ODBC Driver. At this point we assume you have exposed your data as OData Endpoint.

Read SAP S/4HANA data using XML Driver

First let’s look at steps to configure XML Driver. We will read data from SAP S/4HANA OData Service and then in next section we will look at how to load data into MS Access or other target.

1. First, Windows search, write ODBC and select the ODBC Data sources (32 bits)


   Open ODBC Data Source

2. As a second step, in ODBC Data source Administrator press the Add button.


   Add ZappySys

3. In this step, create the new data source, select ZappySys XML Driver.


   Add new zappysys xml driver

4. Now edit that XML data source to configure it. Enter your OData Service URL its typically like below. Replace 3 parts with your own value (i.e. replace {MY-INSTANCE},  {MY-PROJECT}, {MY-TABLE})


   https://{MY-INSTANCE}/sap/opu/odata/sap/{MY-PROJECT}/{MY-TABLE}

   For example if you are hosting SAP HANA in Cloud Instance then your URL may look like below


   https://myXXXXXX-api.s4hana.ondemand.com/sap/opu/odata/sap/MyTestProject/PurchaseOrders

   And create New ZS-HTTP connection in it select Basic Authentication and enter your SAP HANA UserID / Password to call OData Service and select the desire filter.


   XML Driver : SAP S/4HANA OData Service Configuration

5. Now go to Data Format / Compression (Zip/GZip) tab and select Data Format as OData to get all the records.


   Data Format : Odata

6. Finally, now using Query Builder and Code Generator we will generate the query and click on Preview the data.


   Generate Query

7. That’s it we are ready to load SAP S/4HANA OData Service data to MS Access.

Load SAP S/4HANA OData Service in MS Access

1. In MS Access, go to External Data Ribbon and select New Data Source and select From Other Sources and ODBC Database.


   A configuration in MS Access: Import Data From REST API

2. Select the Source and destination of the data, select Import the source data into a new table in the current database and press OK.


   Get External Data – ODBC Database

3. Select your newly created JSON Driver Data Source and click OK.



   Get External Data – Select your newly created ODBC Data Source (JSON Driver)



4. Select tables from the list of tables in the Import Objects screen and click OK.



   Get External Data – Select tables from Import Objects Screen

5. Select Save Import Steps from the screen and click on Save Import button.


   Get External Data – Select Save Import Steps

6. That’s it If everything is OK, you will be able to see the data.


   Data Imported Successfully in MS Access DB Table

How to link REST API data to Access

The linking process is very similar to importing data into the Access table. Follow steps of the previous paragraph – How to import REST API data to Access – but on step 2 select the second option to create a linked table instead. Then at last it’s asked to select a unique record identifier, don’t select anything:

Linked table approach – Don’t select a unique Record identifier

SAP S/4HANA Integration with Other BI Tools

ZappySys ODBC Drivers built using ODBC standard which is widely adopted by industry for a long time. Which mean the majority of BI Tools / Database Engines / ETL Tools already there will support native / 3rd party ODBC Drivers. Below is the small list of most popular tools / programming languages our Drivers support. If your tool / programming language doesn't appear in the below list, which means we have not documented use case but as long as your tool supports ODBC Standard, our drivers should work fine.

BI / Reporting Tools Integration	ETL Tools Integration	Programming Languages Integration
Microsoft Power BI Tableau SSRS (SQL Reporting Services) QlikView /Qlik Sense MicroStrategy Google Sheet Microsoft Excel Microsoft Access Oracle OBIEE Many more (not in this list).....	Informatica PowerCenter (Windows) Informatica Cloud SSIS (SQL Integration Services) SQL Server Talend Data Studio Pentaho Kettle Oracle OBIEE Many more (not in this list).....	Visual Studio C# C++ JAVA Python PHP PowerShell T-SQL (Using Linked Server)



Conclusion

So in this blog, we learned how to Import SAP S/4HANA OData Service Data in Access using ODBC XML / SOAP API Driver in a very simple way. You can achieve many more functionalities with this tool. Check our blogs/articles on XML File / REST API Driver to find out what this tool is capable of more.

References

Finally, you can use the following links for more information about the use of SAP S/4HANA OData Service with our tools:

• SAP API Business Hub
• Landing Page for ODBC XML / SOAP API Driver, you can also find Tutorial Video here.
• Help File: Documentation of XML Driver.
• Blog/articles link: https://zappysys.com/blog/category/odbc-powerpack/odbc-drivers/xml-soap-api-driver/

The post Import SAP S/4HANA OData Service Data Into Ms Access via ODBC Driver appeared first on ZappySys Blog.

In this post, we will learn how to import REST API in MS Access (JSON or SOAP XML data).  We will use ODBC PowerPack to connect and query a JSON file / URL.

JSON stands for JavaScript Object Notation and it is an Open and Standard format to read an object with attributes and values.  JSON is replacing XML because it is faster to read data, it is easier to parse data, it does not require end tags, it is shorter and it can use arrays.

We will load the data using the ZappySys JSON / REST API driver and then import the data in Access. You can use similar techniques to load SOAP Data using XML / SOAP Driver.

Requirements

This article assumes the following requirements are met before you can follow the steps listed in this article.

1. Make sure that Microsoft Access installed
2. Also, the driver ODBC PowerPack installed

An introduction to Rest API and OData

In this example, we will use OData (Open Data Protocol) to consume REST API. REST API (Representational State Transfer Application Program Interface) allows handling the interoperability between computers and the internet.

In REST API we can handle web services in different formats. In this example, we will work with the Northwind example. The Northwind example is available in this URL:

https://services.odata.org/V3/Northwind/Northwind.svc

1. By default, the data is displayed in XML format. To show the data in JSON use this URL:


   https://services.odata.org/V3/Northwind/Northwind.svc/?$format=json

2. There are collections of data like Categories, CustomerDemographic, Customers, Invoices, etc. For example, the following URL will show the data of the categories collection:


   https://services.odata.org/V3/Northwind/Northwind.svc/Categories?$format=json

3. In the next steps, we will use ZappySys drivers to connect to this URL and query using OData.

Configure ODBC DSN for ZappySys JSON Driver

ODBC driver can be accessed in two modes.

1. Using DSN
2. Without DSN (Supply direct Connection String e.g. DRIVER={ZappySys JSON Driver}; …….. )

In this article, we will use the DSN approach (User DSN). We will first add the ZappySys JSON Driver in the ODBC Data Source Administrator.

Follow these steps to accomplish the task:

1. First, Windows search, write ODBC and select the ODBC Data sources (32 bits)


   Open ODBC Data Source

2. As a second step, in ODBC Data source Administrator press the Add button.


   Add ZappySys

3. In this step, create the new data source, select ZappySys ODBC Driver.


   Add new zappysys json driver

4. Here we have several properties, write a data source name. In this example, the name will be ZappySys JSON to Excel.
5. The Data Source (URL or file path) can specify the URL of the source or if it is a local file, you can specify the local path. In this example, the URL is:


   https://services.odata.org/V3/Northwind/Northwind.svc/Invoices?$format=json

   You can also specify a local file path as Data SourceFor a single file:  c:\data\myfile_1.json
   For multiple files: c:\data\myfile_*.json
6. Configure the ODBC JSON Driver like this:


   Configure JSON Driver for REST API Call

How to import REST API data to Access

1. In MS Access, go to External Data Ribbon and select New Data Source and select From Other Sources and ODBC Database.


   A configuration in MS Access: Import Data From REST API

2. Select the Source and destination of the data, select Import the source data into a new table in the current database and press OK.


   Get External Data – ODBC Database

3. Select your newly created JSON Driver from the Machine Data Source and click OK.



   Get External Data – Select your newly created ODBC Data Source (JSON Driver)





4. Select tables from the list of tables in the Import Objects screen and click OK.



   Get External Data – Select tables from Import Objects Screen

5. Select Save Import Steps from the screen and click on Save Import button.


   Get External Data – Select Save Import Steps

6. If everything is OK, you will be able to see the data.


   Data Imported Successfully in MS Access DB Table

How to link REST API data to Access

The linking process is very similar to importing data into the Access table. Follow steps of the previous paragraph – How to import REST API data to Access – but on step 2 select the second option to create a linked table instead. Then once asked to select a unique record identifier, don’t select anything:

Linked table approach – Don’t select a unique record identifier

REST API / XML SOAP Pagination Settings for MS Access

SELECT * FROM $
WITH(
SRC=@'https://zappysys.com/downloads/files/test/pagination_nextlink_inarray_1.json'
,NextUrlAttributeOrExpr = '$.nextlink'  --keep reading until this attribute is missing. If attribute name contains dot then use brackets like this $.['my.attr.name']
)

SELECT * FROM $
WITH (
SRC=@'https://zappysys.com/downloads/files/test/page-xml.aspx?page=1&mode=DetectBasedOnResponseStatusCode'
,PagingMode='ByUrlParameter'
,PagingByUrlAttributeName='page'
,PagingByUrlEndStrategy='DetectBasedOnResponseStatusCode'
,PagingByUrlCheckResponseStatusCode=401
,IncrementBy=1
)

SELECT * FROM $
WITH (
SRC=@'https://zappysys.com/downloads/files/test/cust-<%page%>.xml'
,PagingMode='ByUrlPath'
,PagingByUrlAttributeName='<%page%>'
,PagingByUrlEndStrategy='DetectBasedOnRecordCount'
,IncrementBy=1
)

SELECT * FROM $
LIMIT 25
WITH(
	 Src='https://wordpress.org/news/wp-json/wp/v2/categories?per_page=10'
	,PagingMode='ByResponseHeaderRfc5988'
	,WaitTimeMs='200' --//wait 200 ms after each request
)

REST API / SOAP Web Service Connection Settings for MS Access

If you need to authenticate or authorize your user to access a web resource, you will need to use one of the Connections:

• HTTP
• OAuth

HTTP Connection

Use HTTP Connection for simple Windows, Basic, NTLM or Kerberos authentication. Just fill in a username and a password and you are good to go!

You can also use HTTP Connection for more sophisticated authentication like:

• SOAP WSS (when accessing a SOAP WebService)
• Static Token / API Key (when need to pass an API key in HTTP header)
• Dynamic Token (same as Static Token method except that each time you need to log in and retrieve a fresh API key)
• JWT Token (As per RFC 7519)

OAuth

If you are trying to access REST API resource, it is a huge chance, you will need to use OAuth Connection. Read this article to understand how OAuth authentication and authorization works and how to use it (article originally was written for SSIS PowerPack, but the concepts and UI stay the same):
https://zappysys.com/blog/rest-api-authentication-with-oauth-2-0-using-ssis/

Other settings for REST API / SOAP XML Call in MS Access

REST API / XML SOAP Performance Tips for MS Access

SELECT * FROM value
WITH(
	 Src='https://services.odata.org/V3/Northwind/Northwind.svc/Customers?$format=json&$filter=Country eq ''USA'''
	,DataFormat='Odata'
)

-- Slow query - Client-side filtering
SELECT * FROM value
WHERE Country ='USA'
WITH(
	 Src='https://services.odata.org/V3/Northwind/Northwind.svc/Customers?$format=json'
	,DataFormat='Odata'
)

SELECT * FROM $
WITH
(  SRC='https://myhost.com/some-api'
  ,CachingMode='All'  --cache metadata and data rows both
  ,CacheStorage='File' --or Memory
  ,CacheFileLocation='c:\temp\myquery.cache'
  ,CacheEntryTtl=300 --cache for 300 seconds
)

SELECT * FROM $
LIMIT 10 --//add this just to test how fast you can get 10 rows
WITH(
  Filter='$.LargeArray[*]--FAST' --//Adding --FAST option turn on STREAM mode (large files)
 ,SRC='https://zappysys.com/downloads/files/test/large_file_100k_largearray_prop.json.gz'
 --,SRC='c:\data\large_file.json.gz'
 ,IncludeParentColumns='False'  --//This Must be OFF for STREAM mode (read very large files)
 ,FileCompressionType='GZip' --Zip or None (Zip format only available for Local files)
)

Calling SOAP Web Service in MS Access

To call SOAP API you need to know Request XML Body Structure. If you are not sure how to create SOAP Request body then no worries. Check this article to learn how to generate SOAP Request body using the Free tool SoapUI. Basically, you have to use SoapUI to generate Request XML and after that, you can replace parameters as needed in the generated body.

What is SOAP Web Service?

If you are new to SOAP Web Service sometimes referred as XML Web Service then please read some concept about SOAP Web service standard from this link There are two important aspects in SOAP Web service.

1. Getting WSDL file or URL
2. Knowing exact Web Service URL

What is WSDL

In very simple term WSDL (often pronounced as whiz-dull) is nothing but a document which describes Service metadata (e.g. Functions you can call, Request parameters, response structure etc). Some service simply give you WSDL as xml file you can download on local machine and then analyze or sometimes you may get direct URL (e.g. http://api.mycompany.com/hr-soap-service/?wsdl )

Example SQL Query for SOAP API call using ZappySys XML Driver

Here is an example SQL query you can write to call SOAP API. If you not sure about many details then check next few sections on how to use XML Driver User Interface to build desired SQL query to POST data to XML SOAP Web Service without any coding.

SELECT * FROM $
WITH(
	 Src='http://www.holidaywebservice.com/HolidayService_v2/HolidayService2.asmx'
	,DataConnectionType='HTTP'
	,CredentialType='Basic' --OR SoapWss
	,SoapWssPasswordType='PasswordText'
	,UserName='myuser'
	,Password='pass$$w123'
	,Filter='$.soap:Envelope.soap:Body.GetHolidaysAvailableResponse.GetHolidaysAvailableResult.HolidayCode[*]'
	,ElementsToTreatAsArray='HolidayCode'
	,RequestMethod='POST'
	,Header='Content-Type: text/xml;charset=UTF-8 || SOAPAction: "http://www.holidaywebservice.com/HolidayService_v2/GetHolidaysAvailable"'
	,RequestData='
<soapenv:Envelope xmlns:soapenv="http://schemas.xmlsoap.org/soap/envelope/" xmlns:hol="http://www.holidaywebservice.com/HolidayService_v2/">
   <soapenv:Header/>
   <soapenv:Body>
      <hol:GetHolidaysAvailable>
         <!--type: Country - enumeration: [Canada,GreatBritain,IrelandNorthern,IrelandRepublicOf,Scotland,UnitedStates]-->
         <hol:countryCode>UnitedStates</hol:countryCode>
      </hol:GetHolidaysAvailable>
   </soapenv:Body>
</soapenv:Envelope>'
)

Now let's look at steps to create SQL query to call SOAP API. Later we will see how to generate code for your desired programming language (e.g. C# or SQL Server)

Video Tutorial - Introduction to SOAP Web Service and SoapUI tool

Before we dive into details about calling SOAP API using ZappySys XML Driver, lets first understand what is SOAP API and how to create SOAP requests using SoapUI tool. You will learn more about this process in the later section. The video contains some fragment about using SOAP API in SSIS but just ignore that part because we will be calling Soap API using ZappySys ODBC Driver rather than SSIS Components.

Using SoapUI to test SOAP API call / Create Request Body XML

Assuming you have downloaded and installed SoapUI from here, now we are ready to use WSDL for your SOAP Web Service Calls. If you do not have WSDL file or URL handy then contact your API provider (sometimes you just have to add ?wsdl at the end of your Service URL to get WSDL so try that. Example: http://mycompany/myservice?wsdl ). If you don't know what is WSDL then in short, WSDL is Web service Description Language (i.e. XML file which describes your SOAP Service). WSDL helps to craft SOAP API request Body for ZappySys XML Driver. So Let's get started.

1. Open SoapUI and click SOAP button to create new SOAP Project
2. Enter WSDL URL or File Path of WSDLFor example WSDL for our sample service can be accessed via this URL

   http://www.dneonline.com/calculator.asmx?wsdl


   Create new SOAP API Project in SoapUI tool for SOAP API Testing
3. Once WSDL is loaded you will see possible operations you can call for your SOAP Web Service.
4. If your web service requires credentials then you have to configure it. There are two common credential types for public services (SOAP WSS or BASIC )
   1. To use SOAP WSS Credentials select request node and enter UserId, Password, and WSS-PasswordType (PasswordText or PasswordHash)

      Configure SOAP WSS Credentials for SoapUI (SOAP API Testing Tool)
   2. To use BASIC Auth Credentials select request node and double-click it. At the bottom click on Auth (Basic) and From Authorization dropdown click Add New and Select Basic.
      Configure Basic Authorization for SoapUI (SOAP API Testing Tool)
5. Now you can test your request first Double-click on the request node to open request editor.
6. Change necessary parameters, remove optional or unwanted parameters. If you want to regenerate request you can click on Recreate default request toolbar icon.
   Create SOAP Request XML (With Optional Parameters)
7. Once your SOAP Request XML is ready, Click the Play button in the toolbar to execute SOAP API Request and Response will appear in Right side panel. Test SOAP API using SoapUI Tool (Change Default XML Body / Parameters, Execute and See Response)

Create DSN using ZappySys XML Driver to call SOAP API

Once you have tested your SOAP API in SoapUI tool, we are ready to use ZappySys XML driver to call SOAP API in your preferred BI tool or Programming language.

1. First open ODBC Data Sources (search ODBC in your start menu or go under ZappySys > ODBC PowerPack > ODBC 64 bit)
2. Goto System DSN Tab (or User DSN which is not used by Service account)
3. Click Add and Select ZappySys XML Driver ZappySys ODBC Driver for XML / SOAP API
4. Configure API URL, Request Method and Request Body as below ZappySys XML Driver - Calling SOAP API - Configure URL, Method, Body
5. (This step is Optional) If your SOAP API requires credentials then Select Connection Type to HTTP and configure as below.
   ZappySys XML Driver - Configure SOAP WSS Credentials or Basic Authorization (Userid, Password)
6. Configure-Request Headers as below (You can get it from Request > Raw tab from SoapUI after you test the request by clicking the Play button) Configure SOAP API Request Headers - ZappySys XML Driver
7. Once credentials entered you can select Filter to extract data from the desired node. Make sure to select array node (see special icon) or select the node which contains all necessary columns if you don't have array node. Select Filter - Extract data from nested XML / SOAP API Response (Denormalize Hierarchy)
8. If prompted select yes to treat selected node as Array (This is helpful when you expect one or more record for selected node) Treat selected node as XML Array Option for SOAP API Response XML

Preview SOAP API Response / Generate SQL Code for SOAP API Call

Once you configure settings for XML Driver now you can preview data or generate example code for desired language (e.g. C#, Python, Java, SQL Server). Go to Preview tab and you will see default query generated based on settings you entered in previous sections. Attributes listed in WITH clause are optional. If you omit attribute in WITH clause it will use it from Properties tab.

Preview Data

Preview SOAP API Response in ZappySys XML Driver

Generate Code Option

Generate Example Code for ZappySys Driver

Conclusion

In this article, we learned how to use the ZappySys ODBC PowerPack to import JSON to Access. We used the OData protocol for Import data to Access.  With ZappySys ODBC Power Pack, you can query REST API information or JSON files using SQL and filter the information or write custom queries according to your needs.

References

• JSON – Introduction
• Learn REST: A RESTful Tutorial

The post Import REST API in MS Access (Load JSON / SOAP XML) appeared first on ZappySys Blog.
