Stripe Connector for Power BI In this article you will learn how to integrate Stripe data in Power BI without coding in just a few clicks (live / bi-directional connection to Stripe). This connector support read/write operations for Stripe APIs. Using Stripe Connector you will be able to connect, read, and write data from within Power BI. Follow the steps below to see how we would accomplish that. Download Documentation The driver mentioned above is part of ODBC PowerPack which is a collection of high-performance Drivers for various API data source (i.e. REST API, JSON, XML, CSV, Amazon S3 and many more). Using familiar SQL query language you can make live connections and read/write data from API sources or JSON / XML / CSV Files inside SQL Server (T-SQL) or your favorite Reporting (i.e. Power BI, Tableau, Qlik, SSRS, MicroStrategy, Excel, MS Access), ETL Tools (i.e. Informatica, Talend, Pentaho, SSIS). You can also call our drivers from programming languages such as JAVA, C#, Python, PowerShell etc. If you are new to ODBC and ZappySys ODBC PowerPack then check the following links to get started. ODBC PowerPack - System Requirements and Installation Getting Started - Using ODBC PowerPack ODBC API Driver Help File

Connect to Stripe in other apps Connect to Stripe in SSIS Connect to Stripe in SQL Server Connect to Stripe in SSRS Connect to Stripe in Informatica Connect to Stripe in MS Access Connect to Stripe in MS Excel Connect to Stripe in SSAS Connect to Stripe in C# Connect to Stripe in Python Connect to Stripe in JAVA Connect to Stripe in Tableau Connect to Stripe in SAP Crystal Reports Connect to Stripe in Azure Data Factory (Pipeline) Connect to Stripe in Azure Data Factory (SSIS) Connect to Stripe in Talend Studio Connect to Stripe in UiPath Connect to Stripe in PowerShell Connect to Stripe in ODBC

Video Tutorial - Integrate Stripe data in Power BI

This video covers following and more so watch carefully. After watching this video follow the steps described in this article.

• How to download / install required driver for Stripe integration in Power BI
• How to configure connection for Stripe
• Features about API Driver (Authentication / Query Language / Examples / Driver UI)
• Using Stripe Connection in Power BI

Create ODBC Data Source (DSN) based on ZappySys API Driver

Step-by-step instructions

To get data from Stripe using Power BI we first need to create a DSN (Data Source) which will access data from Stripe. We will later be able to read data using Power BI. Perform these steps:

1. Install ZappySys ODBC PowerPack.

2. Open ODBC Data Sources (x64):


3. Create a User Data Source (User DSN) based on ZappySys API Driver

   ZappySys API Driver


   You should create a System DSN (instead of a User DSN) if the client application is launched under a Windows System Account, e.g. as a Windows Service. If the client application is 32-bit (x86) running with a System DSN, use ODBC Data Sources (32-bit) instead of the 64-bit version.

4. When the Configuration window appears give your data source a name if you haven't done that already, then select "Stripe" from the list of Popular Connectors. If "Stripe" is not present in the list, then click "Search Online" and download it. Then set the path to the location where you downloaded it. Finally, click Continue >> to proceed with configuring the DSN:

   StripeDSN

   Stripe



5. Now it's time to configure the Connection Manager. Select Authentication Type, e.g. Token Authentication. Then select API Base URL (in most cases, the default one is the right one). More info is available in the Authentication section.

    Stripe [Http]

   Steps how to get and use Stripe credentials : Stripe [Http]


   1. Login into your Stripe account
   2. Go to https://dashboard.stripe.com/apikeys.
   3. Then create a Secret key.
   4. In the parameter 'Token' fill in newly created key.

   Fill in all required parameters and set optional parameters if needed:

   StripeDSN

   Stripe

   Stripe [Http]

   https://api.stripe.com/v1

   Required Parameters
   Token	Fill-in the parameter...
   Optional Parameters
   RetryMode	RetryWhenStatusCodeMatch
   RetryStatusCodeList	429
   RetryCountMax	5
   RetryMultiplyWaitTime	True



6. Once the data source has been configured, you can preview data. Select the Preview tab and use settings similar to the following to preview data:


7. Click OK to finish creating the data source.

Video instructions

Read Stripe data in Power BI using ODBC

Importing Stripe data into Power BI from table or view

1. Once you open Power BI Desktop click Get Data to get data from ODBC:


2. A window opens, and then search for "odbc" to get data from ODBC data source:


3. Another window opens and asks to select a Data Source we already created. Choose StripeDSN and continue:

   StripeDSN



4. Most likely, you will be asked to authenticate to a newly created DSN. Just select Windows authentication option together with Use my current credentials option:

   StripeDSN



5. Finally, you will be asked to select a table or view to get data from. Select one and load the data!


6. Finally, finally, use extracted data from Stripe in a Power BI report:


Importing Stripe data into Power BI using SQL query

If you wish to import Stripe data from SQL query rather than a table then you can use advanced options during import steps (as below). After selecting DSN you can click on advanced options to see SQL Query editor.

StripeDSN

                SELECT
                    ProductID,
                    ProductName,
                    SupplierID,
                    CategoryID,
                    QuantityPerUnit,
                    UnitPrice
                FROM Products
                WHERE UnitPrice > 20


Using a full ODBC connection string

In the previous steps we used a very short format of ODBC connection string - a DSN. Yet sometimes you don't want a dependency on an ODBC data source (and an extra step). In those times, you can define a full connection string and skip creating an ODBC data source entirely. Let's see below how to accomplish that in the below steps:

1. Open ODBC data source configuration and click Copy settings:


   ZappySys API Driver - Stripe

   This connector support read/write operations for Stripe APIs

   StripeDSN


2. The window opens, telling us the connection string was successfully copied to the clipboard:

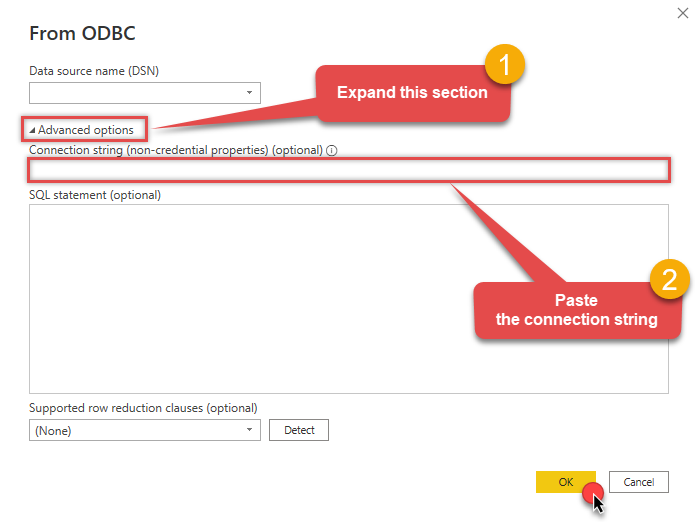

3. Then just paste the connection string into your script:
   StripeDSN

   DRIVER={ZappySys API Driver};ServiceUrl=https://api.stripe.com/v1;CredentialType=Token;TokenAuthHeader=Authorization;


4. You are good to go! The script will execute the same way as using a DSN.

Limitations of using a full connection string

Despite using a full ODBC connection string may be very convenient it comes with a limitation: it's length is limited to 1024 symbols (or sometimes more). It usually happens when API provider generates a very long Refresh Token when OAuth is at play. If you are using such a long ODBC connection string, you may get this error:

"Connection string exceeds maximum allowed length of 1024"

But there is a solution to this by storing the full connection string in a file. Follow the steps below to achieve this:

1. Open your ODBC data source.
2. Click Copy settings button to copy a full connection string (see the previous section on how to accomplish that).
3. Then create a new file, let's say, in C:\temp\odbc-connection-string.txt.
4. Continue by pasting the copied connection string into a newly created file and save it.
5. Finally, the last step! Just construct a shorter ODBC connection string using this format:

   DRIVER={ZappySys API Driver};SettingsFile=C:\temp\odbc-connection-string.txt

6. Our troubles are over! Now you should be able to use this connection string in Power BI with no problems.

Editing query for table in Power BI

There will be a time you need to change the initial query after importing data into Power BI. Don't worry, just right-click on your table and click Edit query menu item:

Using parameters in Power BI (dynamic query)

In the real world, many values of your REST / SOAP API call may be coming from parameters. If that's the case for you can try to edit script manually as below. In below example its calling SQL Query with POST method and passing some parameters. Notice below where paraAPIKey is Power BI Parameter (string type). You can use parameters anywhere in your script just like the normal variable.

To use a parameter in Power BI report, follow these simple steps:

1. Firstly, you need to Edit query of your table (see previous section)

2. Then just create a new parameter by clicking Manage Parameters dropdown, click New Parameter option, and use it in the query:


                               = Odbc.Query("dsn=StripeDSN",
                                            "SELECT ProductID, ProductName, UnitPrice, UnitsInStock
                                             FROM Products
                                             WHERE UnitPrice > " & Text.From(MyParameter) & "
                                             ORDER BY UnitPrice")




   Refer to Power Query M reference for more information on how to use its advanced features in your queries.

Using DirectQuery Option rather than Import

So far we have seen how to Import Stripe data into Power BI but what if you have too much data and you dont want to import but link it. Power BI Offers very useful feature for this scenario. Its called DirectQuery Option. In this section we will explore how to use DirectQuery along with ZappySys Drivers.

Out of the box ZappySys Drivers wont work in ODBC Connection Mode so you have to use SQL Server Connection rather than ODBC if you wish to use Live data using DirectQuery option. See below step by step instructions to enable DirectQuery mode in Power BI for Stripe data.

Basically we will use ZappySys Data Gateway its part of ODBC PowerPack. We will then use Linked Server in SQL Server to Link API Service and then we will issue OPENROWSET queries from Power BI to SQL Server and it will then call Stripe via ZappySys Data Gateway.

1. First read this article carefully, How to query Stripe API in SQL Server.
2. Once linked server is configured we are ready to issue API query in Power BI.
3. Click Get Data in Power BI, select SQL Server Database
4. Enter your server name and any database name
5. Select Mode as DirectQuery
6. Click on Advanced and enter query like below (we are assuming you have created Stripe Data Source in Data Gateway and defined linked server (Change name below).

   SELECT * FROM OPENQUERY([STRIPE_LINKED_SERVER], 'SELECT * FROM Customers')

   SELECT * FROM OPENQUERY([STRIPE_LINKED_SERVER], 'SELECT * FROM Customers')




   DirectQuery option for Power BI (Read Stripe Data Example using SQL Server Linked Server and ZappySys Data Gateway)

7. Click OK and Load data ... That's it. Now your Stripe API data is linked rather than imported.

Publishing Power BI report to Power BI service

Here are the instructions on how to publish a Power BI report to Power BI service from Power BI Desktop application:

1. First of all, go to Power BI Desktop, open a Power BI report, and click Publish button:



2. Then select the Workspace you want to publish report to and hit Select button:



3. Finally, if everything went right, you will see a window indicating success:



   If you need to periodically refresh Power BI semantic model (dataset) to ensure data accuracy and up-to-dateness, you can accomplish that by using Microsoft On-premises data gateway. Proceed to the next section - Refreshing Power BI semantic model (dataset) using On-premises data gateway - and learn how to do that.

Refreshing Power BI semantic model (dataset) using On-premises data gateway

Power BI allows to refresh semantic models which are based on data sources that reside on-premises. This can be achieved using Microsoft On-premises data gateway. There are two types of On-premises gateways:

• Standard Mode
• Personal Mode

Standard Mode supports Power BI and other Microsoft Data Fabric services. It fits perfectly for Enterprise solutions as it installs as a Windows Service and also supports Direct Query feature.

Personal Mode, on the other hand, can be configured faster, but is designed more for home users (you cannot install it as a Windows Service and it does not support DirectQuery). You will find a detailed comparison in the link above.

We recommend to go with Personal Mode for a quick POC solution, but use Standard Mode in production environment.

Below you will find instructions on how to refresh semantic model using both types of gateways.

Refresh using On-premises data gateway (standard mode)

Here are the instructions on how to refresh a Power BI semantic model using On-premises data gateway (standard mode):

1. Go to Power BI My workspace, hover your mouse cursor on your semantic model and click Settings:



2. If you see this view, it means you have to install On-premises data gateway (standard mode):



3. Install On-premises data gateway (standard mode) and sign-in:


   Use the same email address you use when logging in into Power BI account.

4. Register a new gateway (or migrate an existing one):



5. If you are creating a new gateway, name your gateway, enter a Recovery key, and click Configure button:



6. Now, let's get back to your semantic model settings in Power BI portal. Refresh the page and you should see your newly created gateway. Click arrow icon and then click on Add to gateway link:

   ODBC{"connectionstring":"dsn=StripeDSN"}



7. Once you do that, you will create a new gateway connection. Give it a name, set Authentication method, Privacy level, and click Create button:

   dsn=StripeDSN


   In this example, we used the least restrictive Privacy level.

   If your connection uses a full connection string you may hit a length limitation when entering it into the field. To create the connection, you will need to shorten it manually. Check the section about the limitation of a full connection string on how to accomplish it.

   On-premises data gateway (personal mode) does not have this limitation.

8. Proceed by choosing the newly created connection:

   ODBC{"connectionstring":"dsn=StripeDSN"}



9. Finally, you are at the final step where you can refresh the semantic model:



Refresh using On-premises data gateway (personal mode)

Here are the instructions on how to refresh a Power BI semantic model using On-premises data gateway (personal mode):

1. Go to Power BI My workspace, hover your mouse cursor on your semantic model and click Settings:



2. If you see this view, it means you have to install On-premises data gateway (personal mode):



3. Install On-premises data gateway (personal mode) and sign-in:


   Use the same email address you use when logging in into Power BI account.

4. Again, go to your semantic model Settings, expand Data source credentials, click Edit credentials, select Authentication method together with Privacy level, and then click Sign in button:

   dsn=StripeDSN



5. Finally, you are ready to refresh your semantic model:



Advanced topics

Create Custom Stored Procedure in ZappySys Driver

You can create procedures to encapsulate custom logic and then only pass handful parameters rather than long SQL to execute your API call.

Steps to create Custom Stored Procedure in ZappySys Driver. You can insert Placeholders anywhere inside Procedure Body. Read more about placeholders here

1. Go to Custom Objects Tab and Click on Add button and Select Add Procedure:


2. Enter the desired Procedure name and click on OK:


3. Select the created Stored Procedure and write the your desired stored procedure and Save it and it will create the custom stored procedure in the ZappySys Driver:
   Here is an example stored procedure for ZappySys Driver. You can insert Placeholders anywhere inside Procedure Body. Read more about placeholders here


   CREATE PROCEDURE [usp_get_orders]
       @fromdate = '<<yyyy-MM-dd,FUN_TODAY>>'
    AS
       SELECT * FROM Orders where OrderDate >= '<@fromdate>';





4. That's it now go to Preview Tab and Execute your Stored Procedure using Exec Command. In this example it will extract the orders from the date 1996-01-01:


   Exec usp_get_orders '1996-01-01';




5. Let's generate the SQL Server Query Code to make the API call using stored procedure. Go to Code Generator Tab, select language as SQL Server and click on Generate button the generate the code.
   As we already created the linked server for this Data Source, in that you just need to copy the Select Query and need to use the linked server name which we have apply on the place of [MY_API_SERVICE] placeholder.


   SELECT * FROM OPENQUERY([MY_API_SERVICE], 'EXEC usp_get_orders @fromdate=''1996-07-30''')




6. Now go to SQL served and execute that query and it will make the API call using stored procedure and provide you the response.


Create Custom Virtual Table in ZappySys Driver

ZappySys API Drivers support flexible Query language so you can override Default Properties you configured on Data Source such as URL, Body. This way you don't have to create multiple Data Sources if you like to read data from multiple EndPoints. However not every application support supplying custom SQL to driver so you can only select Table from list returned from driver.

If you're dealing with Microsoft Access and need to import data from an SQL query, it's important to note that Access doesn't allow direct import of SQL queries. Instead, you can create custom objects (Virtual Tables) to handle the import process.

Many applications like MS Access, Informatica Designer wont give you option to specify custom SQL when you import Objects. In such case Virtual Table is very useful. You can create many Virtual Tables on the same Data Source (e.g. If you have 50 URLs with slight variations you can create virtual tables with just URL as Parameter setting.

1. Go to Custom Objects Tab and Click on Add button and Select Add Table:


2. Enter the desired Table name and click on OK:


3. And it will open the New Query Window Click on Cancel to close that window and go to Custom Objects Tab.

4. Select the created table, Select Text Type AS SQL and write the your desired SQL Query and Save it and it will create the custom table in the ZappySys Driver:
   Here is an example SQL query for ZappySys Driver. You can insert Placeholders also. Read more about placeholders here


   SELECT
     "ShipCountry",
     "OrderID",
     "CustomerID",
     "EmployeeID",
     "OrderDate",
     "RequiredDate",
     "ShippedDate",
     "ShipVia",
     "Freight",
     "ShipName",
     "ShipAddress",
     "ShipCity",
     "ShipRegion",
     "ShipPostalCode"
   FROM "Orders"
   Where "ShipCountry"='USA'




5. That's it now go to Preview Tab and Execute your custom virtual table query. In this example it will extract the orders for the USA Shipping Country only:


   SELECT * FROM "vt__usa_orders_only"




6. Let's generate the SQL Server Query Code to make the API call using stored procedure. Go to Code Generator Tab, select language as SQL Server and click on Generate button the generate the code.
   As we already created the linked server for this Data Source, in that you just need to copy the Select Query and need to use the linked server name which we have apply on the place of [MY_API_SERVICE] placeholder.


   SELECT * FROM OPENQUERY([MY_API_SERVICE], 'EXEC [usp_get_orders] ''1996-01-01''')




7. Now go to SQL served and execute that query and it will make the API call using stored procedure and provide you the response.


Actions supported by Stripe Connector

Stripe Connector Examples for Power BI Connection

This page offers a collection of SQL examples designed for seamless integration with the ZappySys API ODBC Driver under ODBC Data Source (36/64) or ZappySys Data Gateway, enhancing your ability to connect and interact with Prebuilt Connectors effectively.

SELECT * FROM Customers

SELECT * FROM Customers
WHERE Id = 'abc'

SELECT * FROM Customers
WHERE Created > '2010-01-01'

INSERT INTO Customers
([Name]
	, [Email]
	, [Description]
	, [Phone]
	, [Balance]
	, [AddressLine1]
	, [AddressLine2]
	, [AddressCity]
	, [AddressState]
	, [AddressCountry]
	, [AddressPostalCode]
	, [InvoicePrefix]
	)
VALUES('Cust-1'
	, 'email@abc.com'
	, 'Some desc'
	, '+1 222-333-4444'
	, 0
	, '55 Main St.'
	, 'Suite 100'
	, 'New York'
	, 'NY'
	, 'USA'
	, '07204' --JSON fragment
	, 'INVC'
)

UPDATE Customers
SET   Name='Cust1-Updated'
	, Email='a-updated@b.com'
	, Phone='+1 800-123-2345'
	, Description='Desc-updated'
	, AddressLine1='Line-1-upd'
	, AddressLine2='Line-2-upd'
	, AddressCity='SomeCity'
	, AddressState='NY'
	, AddressCountry='USA'
	, AddressPostalCode='112233'

	, ShippingPhone='+1 800-123-2345'
	, ShippingName='SHName-upd'
	, ShippingAddressLine1='Line-1-upd'
	, ShippingAddressLine2='Line-2-upd'
	, ShippingAddressCity='SomeCity'
	, ShippingAddressState='NY'
	, ShippingAddressCountry='USA'
	, ShippingAddressPostalCode='112233'

	, Balance=100
WHERE Id='cus_IcUG2lD69ZHuol'

DELETE FROM Customers
WHERE Id = 'abc'

SELECT * FROM Products

SELECT * FROM Products
WHERE Id = 'abc'

UPDATE Products
SET [name] = 'new name'
WHERE Id = 'abc'

INSERT INTO Products
(     [Name]
	, [Caption]
	, [Description]
	, [Type]
	--, [UnitLabel] --only when product type=service
	, [Active]
	, [PackageDimensionsHeight]
	, [PackageDimensionsWidth]
	, [PackageDimensionsLength]
	, [PackageDimensionsWeight]
	, [URL]
	, [Image1]
	, [Image2]
	, [Image3]
	)
VALUES('SSIS PowerPack 3'
	, 'SSIS Caption 3'
	, 'SSIS PowerPack description long ....'
	, 'good' --or service
	--, 'Unit label' --only when product type=service
	, 'True' --active ?
	, '12'
	, '13'
	, '14'
	, '1000'
	, 'https://zappysys.com/products/ssis-powerpack/'
	, 'https://zappysys.com/images/tech/web-api-logo.png'
	, 'https://zappysys.com/images/tech/xml-logo.png'
	, 'https://zappysys.com/images/tech/salesforce-logo.png'
)

UPDATE Products
SET   [Name]='SSIS PowerPack 3 - Updated'
	, [Caption]='Caption-updated'
	, [Description]='Desc-updated'
	--, [UnitLabel] --only when product type=service
	, [Active]='true'
	, [PackageDimensionsHeight]=12
	, [PackageDimensionsWidth]=13
	, [PackageDimensionsLength]=14
	, [PackageDimensionsWeight]=1122
	, [URL]='https://zappysys.com/products/ssis-powerpack/?updated=1'
	, [Image1]='https://zappysys.com/images/tech/web-api-logo.png?updated=1'
	, [Image2]='https://zappysys.com/images/tech/xml-logo.png?updated=1'
WHERE Id='prod_MiSJzGZ8PDM9uh'

DELETE FROM Products
WHERE Id = 'abc'

SELECT * FROM Invoices

SELECT * FROM Invoices
WHERE Id = 'abc'

SELECT * FROM InvoiceItems

SELECT * FROM InvoiceItems
WHERE Id = 'abc'

INSERT INTO Invoices([Customer],[AmountRemaining])
VALUES ('cus_LqWX1s0E32JJeZL', 12345)

UPDATE Invoices
SET [DaysUntilDue] = 20
WHERE Id = 'abc'

DELETE FROM Invoices
WHERE Id = 'abc'

Conclusion

In this article we discussed how to connect to Stripe in Power BI and integrate data without any coding. Click here to Download Stripe Connector for Power BI and try yourself see how easy it is. If you still have any question(s) then ask here or simply click on live chat icon below and ask our expert (see bottom-right corner of this page).

Download Stripe Connector for Power BI Documentation

More integrations

Other application integration scenarios for Stripe

SSIS

SQL Server

SSRS

Informatica

MS Access

MS Excel

SSAS

C#

Python

JAVA

Tableau

SAP Crystal Reports

Azure Data Factory (Pipeline)

Azure Data Factory (SSIS)

Talend Studio

UiPath

PowerShell

ODBC

Other connectors for Power BI

Amazon Ads

Amazon Selling Partner (SP-API)

Asana

Azure DevOps

Cosmos DB

DropBox

ElasticSearch

FastSpring

Google BigQuery

Google Calendar

Google Drive

Google Sheets

Hubspot

Jira

Mailchimp

ManagedEngine ServiceDesk Plus (Zoho)

OData

OneDrive

Outlook Mail (Office 365)

Power BI

ServiceNow

SharePoint Online

Shopify

Smartsheet

Stripe

YouTube

Zendesk

Zoho CRM

Zoho SalesIQ

Zoom

REST API

JSON

JSON File

XML

SOAP

XML File

JDBC-ODBC Bridge

Salesforce

CSV

Amazon S3 JSON File

Amazon S3 XML File

Amazon S3 CSV File

Azure Blob JSON File

Azure Blob XML File

Azure Blob CSV File

FTP/SFTP JSON File

FTP/SFTP XML File

FTP/SFTP CSV File

Build your own Custom API Connector

Download Stripe Connector for Power BI Documentation

Common Searches:
