SSIS Azure Blob CSV Source
PreviousNext

SSIS Azure Blob CSV Source can be used to parse / extract CSV files stored in Azure blob storage. You can also read compressed (gzip) files without extracting on local disk.

Download SSIS PowerPack

Content

Video Tutorial

Coming soon...

Step-By-Step

In this tutorial you will learn how to read data from Azure Storage CSV File using Azure Blob CSV File Source(In this case its Zip file from Windows Emulator).
  1. Firstly, You need to Download and Install SSIS ZappySys PowerPack.
  2. Once you finished first step, Open Visual Studio and Create New SSIS Package Project.

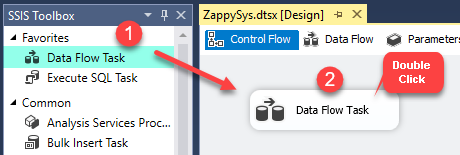

  3. Now, Drag and Drop SSIS Data Flow Task from SSIS Toolbox.
    SSIS Data Flow Task - Drag and Drop
  4. Double click on the Data Flow task to see Data Flow designer surface.
  5. Here, In Visual Studio, drag and drop the ZS Azure Blob CSV File Source in the design surface.

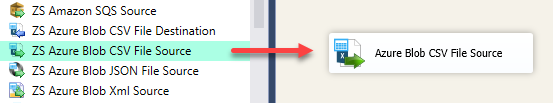

    SSIS Azure Blob CSV File Source - Drag and Drop
  6. Now, we need Azure Storage connection. Click here to Create Connection.
  7. Double click on Azure Blob CSV File Source to configure it.
  8. Now, Select Storage connection, Select file using Blob Browser UI.

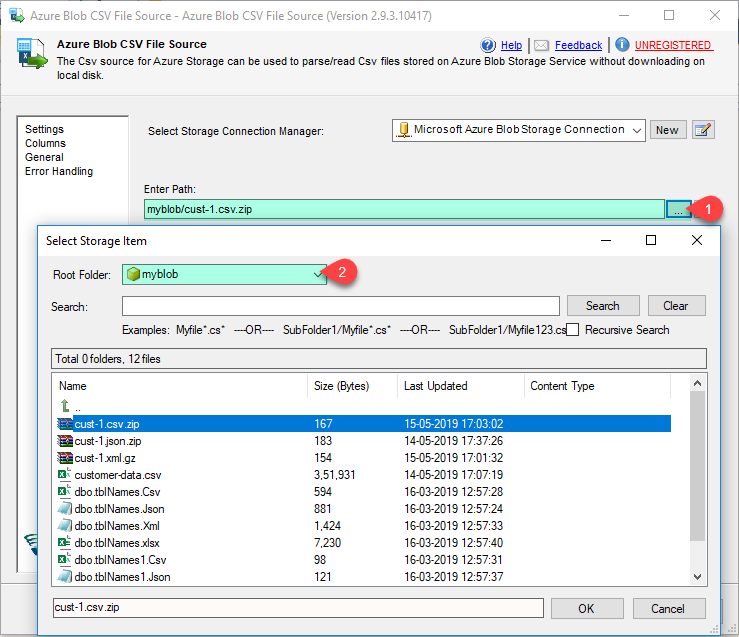

    SSIS Azure Blob CSV File Source - Select CSV File(s) using Blob Browser UI
  9. In the GZip/Zip Compression tab, Set suitable file compression format.

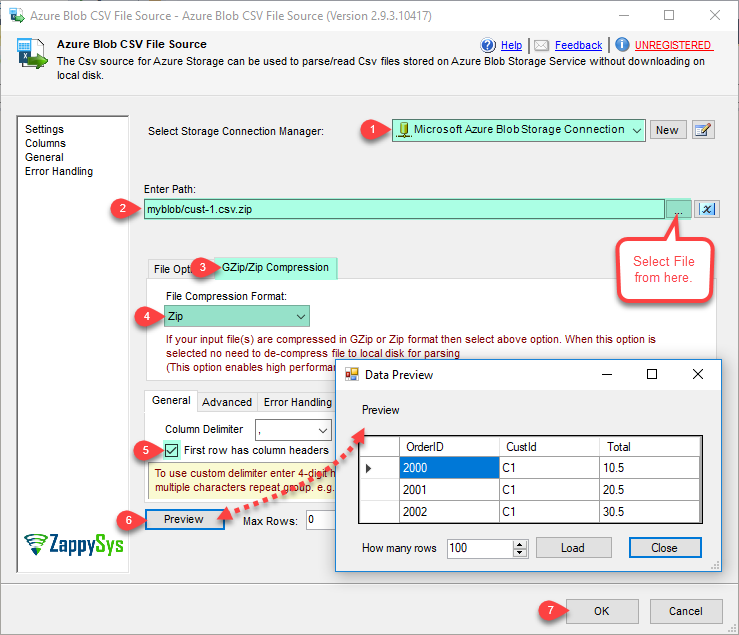

    SSIS Azure Blob CSV Source - Read from CSV File Options
  10. Click on Preview button to see Data Preview.
  11. Click on OK button to save Azure Blob CSV File Source configure setting UI.
  12. From the SSIS toolbox drag and drop Trash Destination on the data flow designer surface.

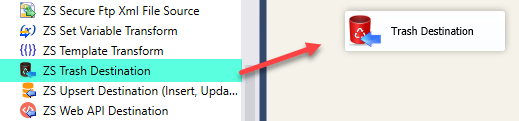

    SSIS Trash Destination - Drag and Drop
  13. Now single click on the Azure Blob CSV File Source, once you see blue arrow from source ... connect it to Trash Destination.
  14. Double click on ZS Trash Destination to Configure it.

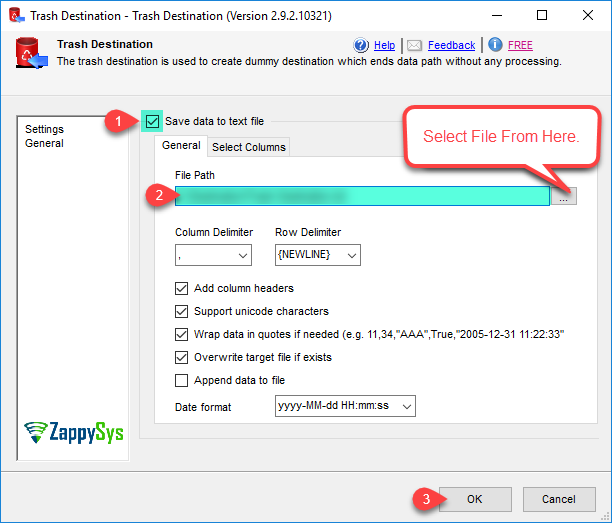

    SSIS Trash Destination - Configure
  15. Click on OK button to save Trash Destination configure setting UI.
  16. Thats all, Just Execute or run your Package.
    SSIS Azure Blob CSV Source - Redirect Bad Records (Error Handling)

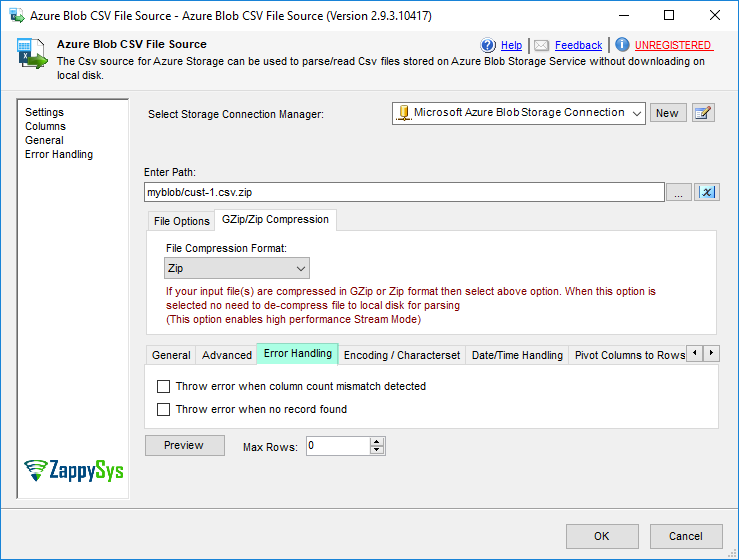

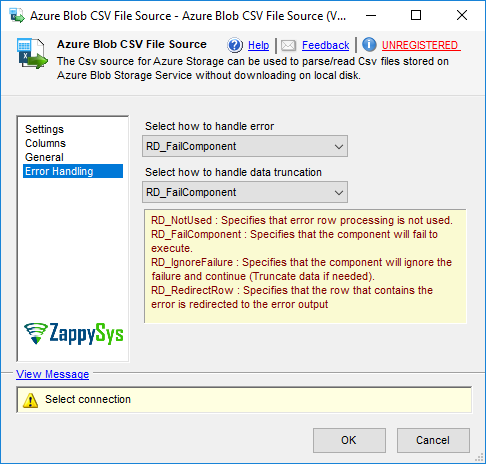

SSIS Azure Blob CSV Source - Error Handling Options

SSIS Azure Blob CSV Source - Error Handling Options

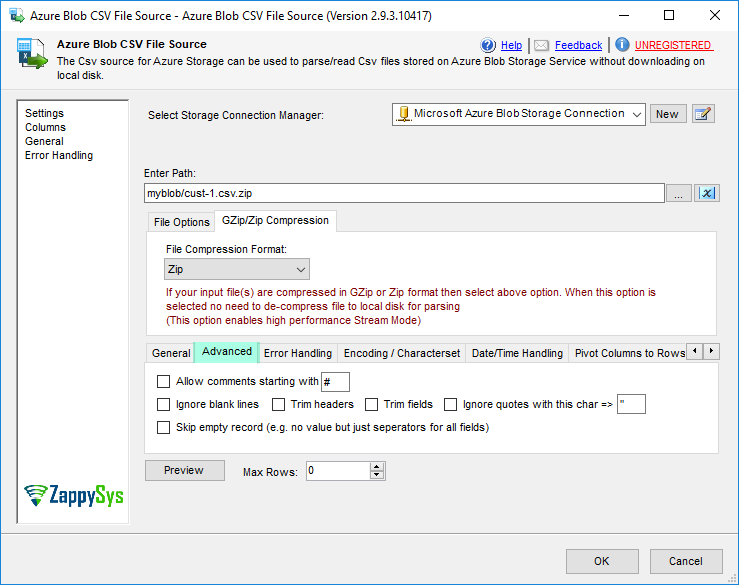

SSIS Azure Blob CSV Source - Advanced CSV Parsing Options

SSIS Azure Blob CSV Source - Advanced CSV Parsing Options

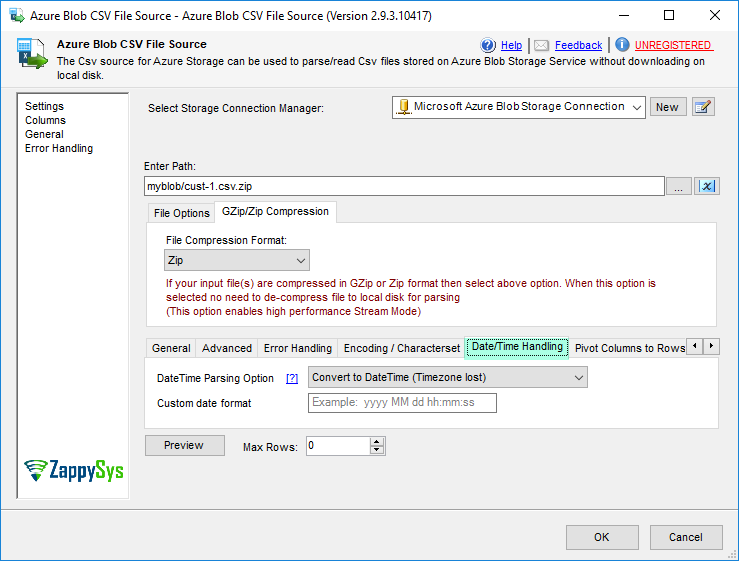

SSIS Azure Blob CSV Source - DateTime Parsing Options

SSIS Azure Blob CSV Source - DateTime Parsing Options

Properties

Property Name Description
LoggingMode LoggingMode determines how much information is logged during Package Execution. Set Logging mode to Debugging for maximum log.

Available Options (Use numeric value listed in bracket if you have to define expression on this property (for dynamic behavior).

Option Description
Normal [0] Normal
Medium [1] Medium
Detailed [2] Detailed
Debugging [3] Debugging
PrefixTimestamp When you enable this property it will prefix timestamp before Log messages.
TreatBlankNumberAsNull Treat empty string as NULL for any numeric data types
TreatBlankBoolAsNull Treat empty string as NULL for bool data types
TreatBlankDateAsNull Treat empty string as NULL for any date/time data types
Encoding Encoding of source file

Available Options (Use numeric value listed in bracket if you have to define expression on this property (for dynamic behavior).

Option Description
Default [0] Default
ASCII [1] ASCII
UTF8 [2] UTF-8
UTF16 [3] UTF-16 LE (i.e. Unicode Little Endian)
UTF32 [4] UTF-32
UTF8WithoutBOM [5] UTF-8 Without BOM
UTF32WithoutBOM [6] UTF-32 Without BOM
UTF7 [7] UTF-7
UTF7WithoutBOM [8] UTF-7 Without BOM
UTF16WithoutBOM [9] UTF-16 Without BOM
BigEndian [10] UTF-16 BE (i.e. Unicode Big Endian)
BigEndianWithoutBOM [11] UTF-16 BE Without BOM
CharacterSet Character set for text (e.g. windows-1250 )
Culture Culture code (e.g. pt-BT). This helps to parse culture specific number formats (e.g. In some culture you may have comma rather than decimal points 0.1 can be 0,1)
MaxRows Maximum JSON records to fetch. Set this value to 0 for all records
EnableCustomReplace Enables custom search / replace in the document text after its read from the file/url or direct string. This replace operation happens before its parsed. This option can be useful for custom escape sequence in source document which is causing issue in the parser. You can replace such unwanted characters fore parser starts parsing the text.
SearchFor String you like to search for (Only valid when EnableCustomReplace option is turned on). If you want to enable Regular Expression pattern search then add --regex or --regex-ic (for case-insensitive search)  at the end of your search string (e.g. ORDER-\d+--regex OR ORDER-\d+--regex-ic (case-insensitive search) )
ReplaceWith String you like to replace with (Only valid when EnableCustomReplace option is turned on). If you added --regex or --regex-ic at the end of your SearchFor string then ReplaceWith can use special placeholders (i.e. $1, $2...) based on regular expression groups. For example you SearchFor=(\w+)(@\w+.com) to search for emails then to mask emails you can something like this for ReplaceWith = ****$2 (where $2 is domain part and $1 is before @)
ColumnDelimiter Column delimiter for data you like to parse. To use custom delimiter type it directly or enter 4-digit hex string starting with \x (e.g. you can enter \x0009 for Tab character). For multiple characters repeat group. e.g. \x00090009 if you need two tabs.
HasColumnHeaderRow Column delimiter for data you like to parse.
ThrowErrorOnColumnCountMismatch Throw error if record has different number of columns than actual columns detected based on first row
ThrowErrorOnNoRecordFound Throw error if no record found or file is blank
AllowComment Allow comment lines which can be skipped by parser. When comment line found row is skipped. See CommentCharacter to configure first character for commented line.
CommentCharacter Allow lines with comment. When comment line found row is skipped. See LineCommentCharacter property to configure first character for commented line.
SkipRows Total data rows you like to skip (after header row)
SkipHeaderCommentRows Total rows you like to skip before header row. If its header less file then skip initial N rows (before any data row).
TreatBlankAsNull When this option is enabled, blank values for any column is treated as null so for string type rather than empty value you will see null value in the output.
IgnoreBlankLines When this option is enabled, blank lines are skipped.
SkipEmptyRecords When this option is enabled, any row with empty values in all fields is skipped (e.g. , , , , ).
TrimHeaders Trim column names if whitespace found before or after name
TrimFields Trim value for each field if whitespace found before or after
IgnoreQuotes Ignore quote character and consider it part of actual value
QuoteCharacter Quote character for quoted values.
DirectPath JSON file path (e.g. c:\data\myfile.json) or pattern to process multiple files (e.g. c:\data\*.json)
Recursive Include files from sub folders too.
EnableMultiPathMode Enable this option to treat DirectPath as list of paths / urls (separated by new line or double colon :: ). This option is very useful if you have many URLs / Paths with similar data structure and you want to return response from all URLs in one step (UNION all URLs with single dataset). Examples:  http://someurl1::http://someurl2 --OR-- c:\file1::c:\file2 --OR-- c:\file1::https://someurl
ContinueOnFileNotFoundError By default process stops with error if specified local file is not found. Set this property to true if you wish to continue rather than throwing file not found error.
FileCompressionType Compression format for source file (e.g. gzip, zip)

Available Options (Use numeric value listed in bracket if you have to define expression on this property (for dynamic behavior).

Option Description
None [0] None
GZip [1] GZip
Zip [2] Zip
TarGZip [3] TarGZip
DateFormatString Specifies how custom date formatted strings are parsed when reading JSON.
DateParseHandling Specifies how date formatted strings, e.g. Date(1198908717056) and 2012-03-21T05:40Z, are parsed when reading JSON.

Available Options (Use numeric value listed in bracket if you have to define expression on this property (for dynamic behavior).

Option Description
None [0] Keep date as string
DateTime [1] Convert to DateTime (Timezone lost)
DateTimeOffset [2] Convert to DateTimeOffset (Preserve Time zone)
FloatParseHandling Specifies how decimal values are parsed when reading JSON. Change this setting to Decimal if you like to have large precision / scale.

Available Options (Use numeric value listed in bracket if you have to define expression on this property (for dynamic behavior).

Option Description
Double [0] Default (Double [~15-17 digits])
Decimal [1] Decimal (High Precision / Scale [~28-29 digits] )
OnErrorOutputResponseBody When you redirect error to error output by default you get additional information in ErrorMessage column. Check this option if you need exact Response Body (Useful if its in JSON/XML format which needs to be parsed for additional information for later step).
OutputFilePath Set this option to true if you want to output FilePath. This option is ignored when you consume DirectValue or data from Url rather than local files. Output column name will be __FilePath
OutputFileName Set this option to true if you want to output FileName. This option is ignored when you consume DirectValue or data from Url rather than local files. Output column name will be __FileName
EnablePivot When this property is true then Column is converted to Row. Pivoted names will appear under  Pivot_Name column and values will appear under Pivot_Value field.
IncludePivotPath When this property is true then one extra column Pivot_Path appears in the output along with Pivot_Name and Pivot_Value. This option is really useful to see parent hierarchy for pivoted value.
EnablePivotPathSearchReplace Enables custom search/replace function on Pivot_Path before final value appears in the output. This option is only valid when IncludePivotPath=true.
PivotPathSearchFor Search string (static string or regex pattern) for search/replace operation on Pivot_Path. You can use --regex suffix to treat search string as Regular Expression (e.g. MyData-(\d+)--regex ). To invoke case in-sensitive regex search use --regex. This option is only valid when EnablePivotPathSearchReplace=true.
PivotPathReplaceWith Replacement string for search/replace operation on Pivot_Path. If you used --regex suffix in PivotPathSearchFor then you can use placeholders like $0, $1, $2... anywhere in this string (e.g. To remove first part of email id and just keep domain part you can do this way. Set PivotPathSearchFor=(\w+)@(\w+.com)--regex, and set current property i.e. PivotPathReplaceWith=***@$2 ). This option is only valid when EnablePivotPathSearchReplace=true.
MetaDataScanMode Metadata scan mode controls how data type and length is determined. By default few records scanned to determine datatype/length. Changing ScanMode affects length/datatype accuracy.

Available Options (Use numeric value listed in bracket if you have to define expression on this property (for dynamic behavior).

Option Description
Auto [0] Auto
Strict [1] Strict - Exact length
Guess2x [2] Guess2x - 2 times bigger
Guess3x [3] Guess3x - 3 times bigger
Guess4x [4] Guess4x - 4 times bigger
TreatAsUnicodeString [5] Set all columns as string
Guess10x [6] Guess10x - 10 times bigger
TreatStringAsMaxLength [7] Set string columns with MAX Length - i.e. DT_WSTR(4000)
TreatStringAsBlob [8] Set string columns as BLOB - i.e. DT_NTEXT
MetaDataCustomLength Length for all string column. This option is only valid for MetaDataScanMode=Custom
MetaDataTreatStringAsAscii When this option is true, it detects all string values as DT_STR (Ascii) rather than DT_WSTR (Unicode)

Setting UI

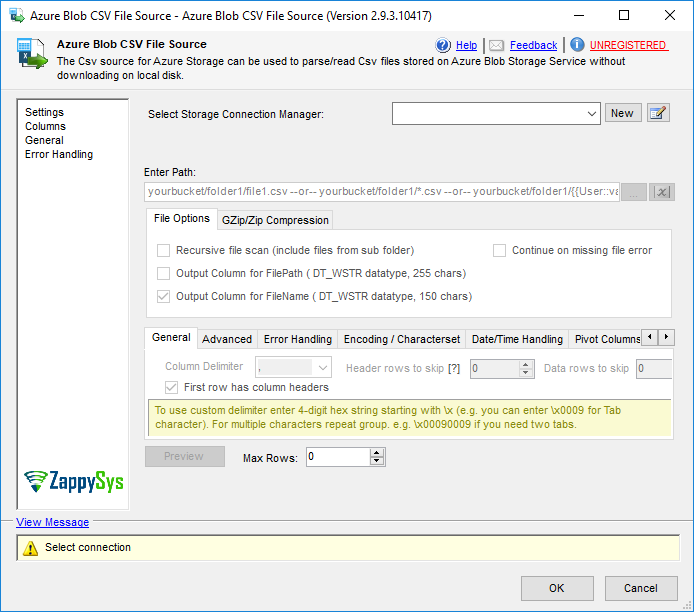

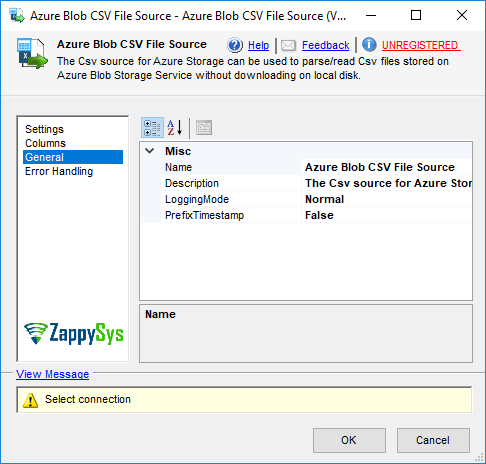

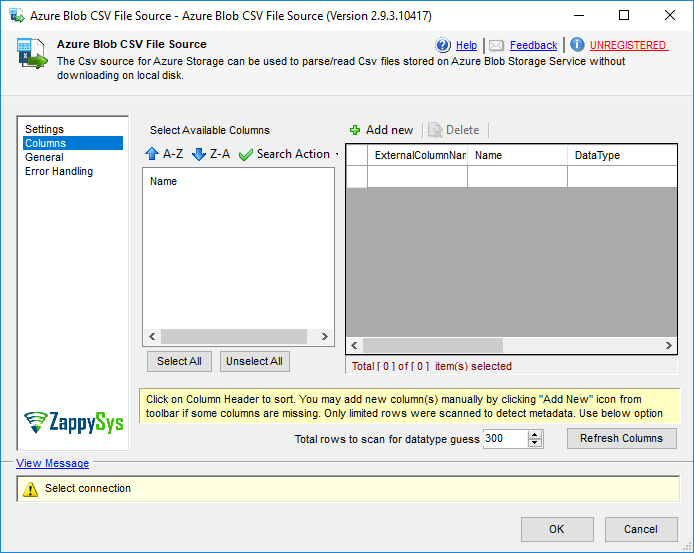

SSIS Azure Blob CSV File Source - Setting UI
SSIS Azure Blob CSV File Source - Setting UI
SSIS Azure Blob CSV File Source - Setting UI
SSIS Azure Blob CSV File Source - Setting UI
