In our previous blog, we saw how to write data to a CSV file in SSIS (GZip/Split). In this blog, we will parse a CSV string into multiple columns and rows using the SSIS CSV Parser Transform (helpful for extracting data from a raw CSV string stored as a database column or from another source). It also supports Pivot mode, allowing you to convert a single CSV string value into Rows.

In a nutshell, this post will focus on parsing a CSV string into multiple columns and rows using the CSV Parser Transform.

Prerequisite

1. First, you will need to have SSIS installed
2. Secondly, make sure to have SSDT
3. Finally, do not forget to install ZappySys SSIS PowerPack

How to Extract Data from SQL Server Table and Parse a string into multiple columns and rows.

Let’s start with an example. In this SSIS CSV Parser Transform example, we will parse a database column containing a CSV string into multiple columns and rows.

1. First of all, drag and drop the Data Flow Task from the SSIS Toolbox and double-click it to edit.

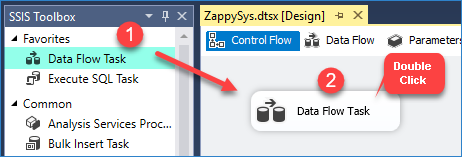

   Drag and Drop SSIS Data Flow Task from SSIS Toolbox
2. Furthermore, drag and drop the OLE DB Source.

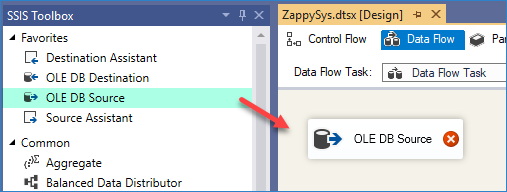

   OLE DB Source – Drag and Drop
3. Double-click the OLE DB Source to configure it, then click OK.

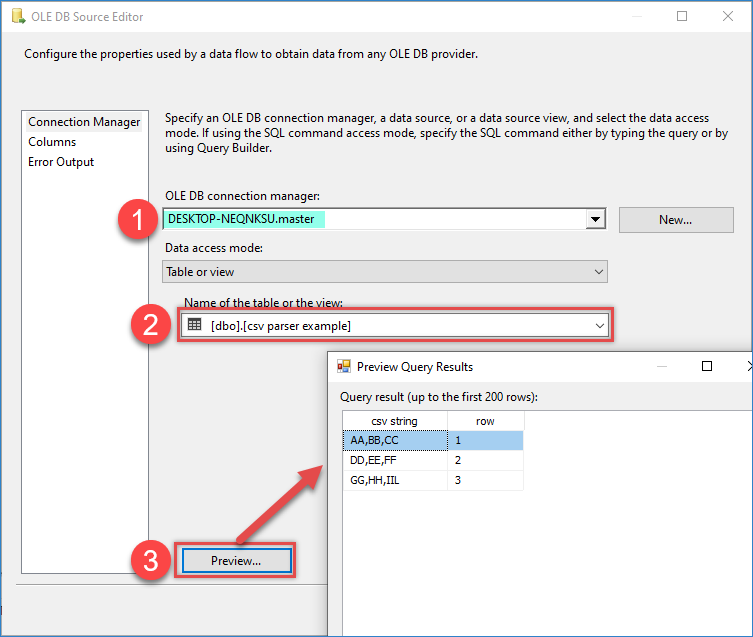

   Configure OLE DB Source Editor

4. Now drag and drop the CSV Parser Transform, then connect it to the OLE DB source.
5. Double-click on CSV Parser Transform and select that column from the drop-down, enter sample data, and click on Preview.

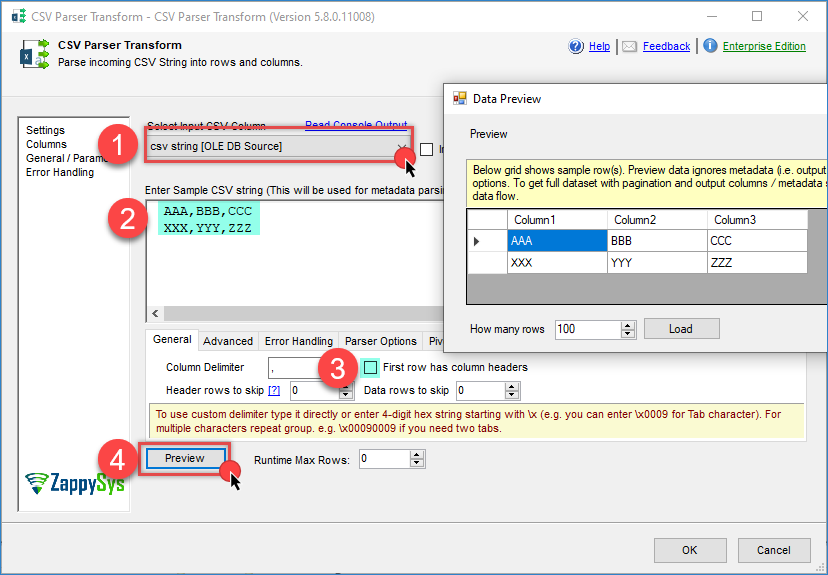

   CSV Parser Transform Preview

6. That’s it, now you can use that data in your desired destination.

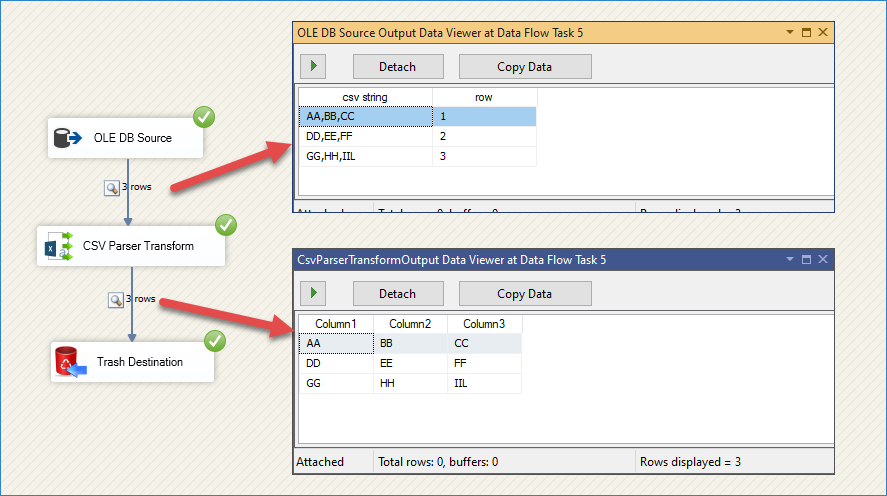

   CSV Parser Transform result

SSIS CSV Parser Transform – Pivot Option (Normalize CSV string)

If Pivot Option is enabled, you will see two extra columns in the output (Pivot_Name and Pivot_Value).

Property name will appear in the “Pivot_Name” column, and property value will appear in the ”Pivot_Value’’ column. This option is beneficial when your data has a dynamic number of attributes and you want to store them as rows rather than columns—parent level.

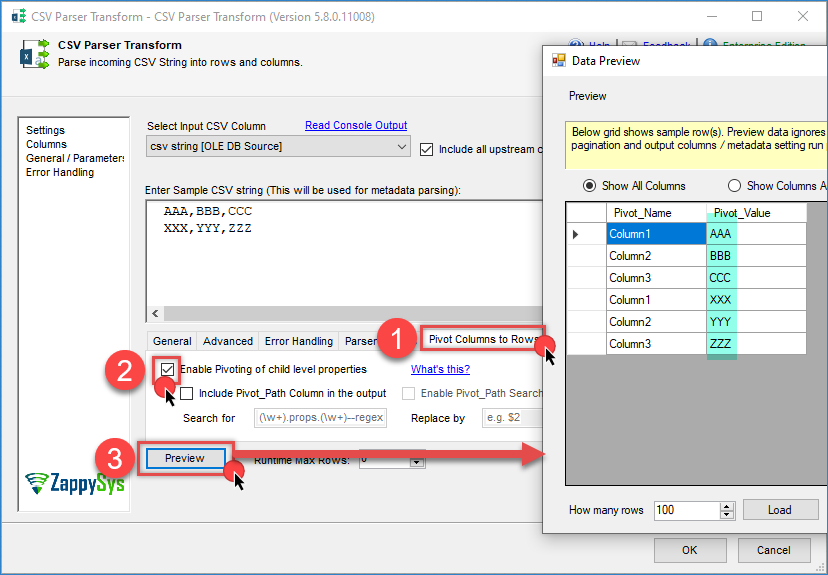

SSIS CSV Parser Transform – Pivot Option (Normalize CSV string)

Conclusion

After all, we saw how to parse a string into multiple columns and rows using the SSIS CSV Parser Transform from a SQL Server Table using an OLE DB Connection.  To explore many other scenarios not discussed in this article, download SSIS PowerPack from here (includes 70+ Components).

References

Finally, you can use the following URL for more information.

• Help File: CSV Parser Transform
