Advanced SSIS File System Task
 PreviousNext

Advanced SSIS File System Task is designed to full fill most common file system related operations in SSIS. Native SSIS File System Task provided by Microsoft lakes many useful features (e.g. copy/move/delete/rename multiple files, search/replace etc).

Download SSIS PowerPack

Content

Video Tutorial

Coming soon...

Step-By-Step

In this tutorial you will learn how to use ZS Advanced File System Task to perform download, upload file and so on. Most simplest way to use ZS Advanced File System Task in SSIS as given below Steps. You can also use Scan Recursive option to include files inside child folders. For advanced filtering options use Filter and Sorting Tab.
  1. Firstly, You need to Download and Install SSIS ZappySys PowerPack.
  2. Once you finished first step, Open Visual Studio and Create New SSIS Package Project.
  3. In Visual Studio, drag and drop the Advanced File System Task in the design surface from SSIS Toolbox.

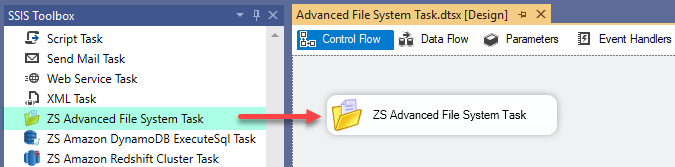

    SSIS Drag and Drop ZS Advanced File System

How to copy files using Advanced File System Task.

  1. Now, Double click on Advanced File System Task to configure it.
  2. Set Action to Copy File(s), Select file path from browse button.
    Note: If you want to operation with multiple files then use wildcard pattern as below (when you use wildcard pattern in source path then system will treat target path as folder regardless you end with slash ).

Examples:
c:\data\file123.csv (single file).
c:\data\file*.csv (all files starting with file).
c:\data\subfolder\*.csv (all files with .csv Extension and located under folder subfolder).
    Set Target Path with Date and Time and file name with suitable extension.

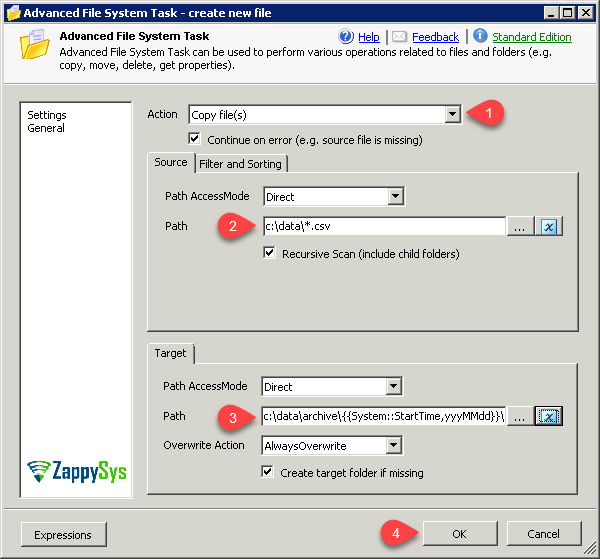

    Advanced SSIS File System Task - SSIS Copy Multiple Files (Use wildcard)
  3. Click OK button to save Advance File System configure setting UI.
  4. Thats all, you can run or Execute task.

How to Delete files using Advanced File System Task.

  1. Now, Double click on Advanced File System Task to configure it.
  2. Set Action to Delete File(s), Select file path from browse button (here you can use wildcard pattern).

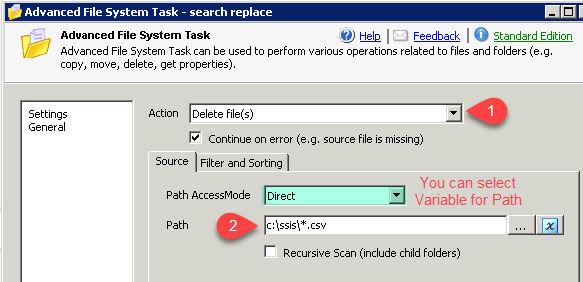

    Advanced SSIS File System Task - SSIS Copy Multiple Files (Use wildcard)
  3. In the Filter and sorting you can use where condition. for more info click on Examples.

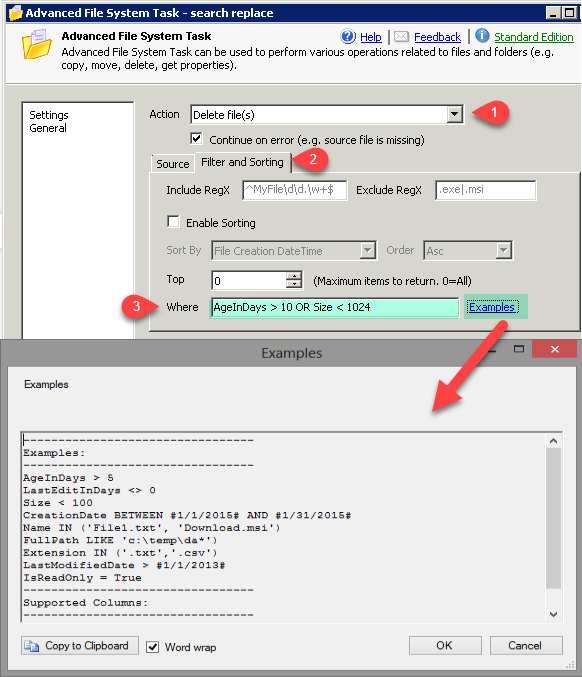

    Advanced SSIS File System Task - SSIS Delete files older than X days – Advanced Sorting and Filtering
  4. Click OK button to save Advance File System configure setting UI.
  5. Thats all, you can run or Execute task.

How to search file content and replace it using Advanced File System Task.

  1. Double click on Advanced File System Task to configure it.
  2. Set Action to Search and Replace string in file, select file path. In the Find What and Replace with write string you want to perform. Check on Ignore case.

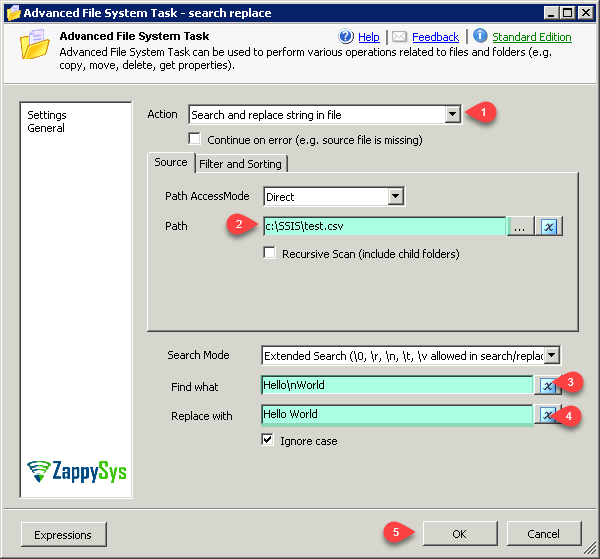

    Advanced SSIS File System Task - SSIS Search and Replace multiple files (Extended mode and Regular Expression Support)
  3. Click OK button to save Advance File System configure setting UI.
  4. Thats all, you can run or Execute task.

How to check file is exist or not using Advanced File System Task.

  1. Double click on Advanced File System Task to configure it.
  2. Set Action to Get file exist status, select file path. Select Result Variable or click here for create new variable.

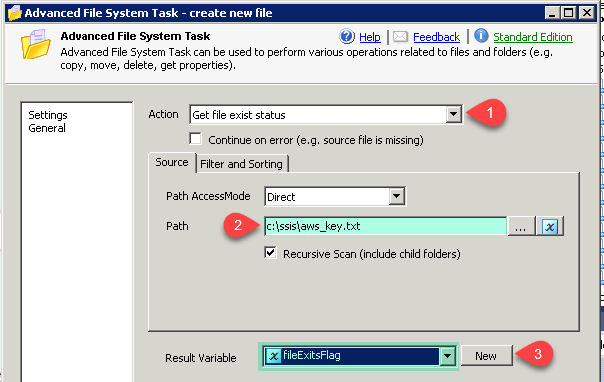

    Advanced SSIS File System Task - SSIS check file exists (check for single or multiple files)
  3. Click OK button to save Advance File System configure setting UI.
  4. Thats all, you can run or Execute task.

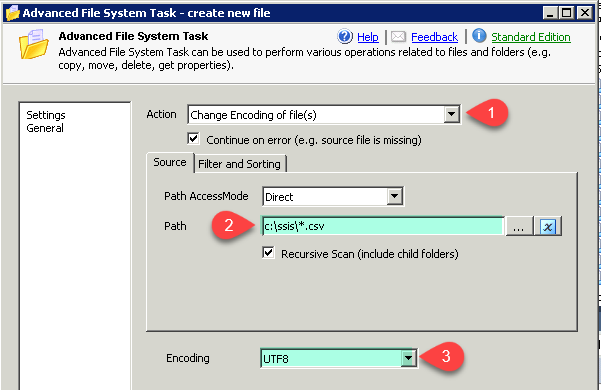

How to change encoding (UTF8, UTF16 or ASCII) of file using Advanced File System Task.

  1. Double click on Advanced File System Task to configure it.
  2. Set Action to Change Encoding of file(s), Select file path (here you can use wildcard pattern). Set Encoding from dropdown list of encode.
    Advanced SSIS File System Task - SSIS change file encoding (to UTF8, UTF16 or ASCII)
  3. Click OK button to save Advance File System configure setting UI.
  4. Thats all, you can run or Execute task.

How to get list of files using Advanced File System Task.

  1. Double click on Advanced File System Task to configure it.
  2. Set Action to Get files list as ADO .net DataTable. Select file path using wildcard pattern. Create a Variable with Object DataType for store Files list in Variable.
    Advanced SSIS File System Task - SSIS get sorted file list and loop through it
  3. You can check our blog, how to Get list of files Click Here.
  4. Thats all, you can run or Execute task.

Properties

Property Name Description
Action Specifies what action you want to perform

Available Options (Use numeric value listed in bracket if you have to define expression on this property (for dynamic behavior).

Option Description
DeleteFile [30] Delete file(s)
DeleteFolder [40] Delete folder
DeleteFolderWithSubfolders [41] Delete folder (including Subfolders)
CopyFile [50] Copy file(s)
MoveFile [60] Move file(s)
RenameFile [70] Rename file(s)
SearchReplaceFile [80] Search and replace string in file
ChangeEncoding [81] Change Encoding of file(s)
CreateNewFile [90] Create new file
AppendToFile [91] Append data to file
CreateFolder [100] Create new folder
CreateFolderIfNotExists [111] Create new folder if does not exist
GetFileSize [1010] Get file(s) size
GetFileExistsFlag [1030] Get file exist status
GetFileCount [1040] Get files count
GetFileLastModifiedDate [1050] Get file LastModifiedDate
GetFilePathLatest [1051] Get Latest file path (Sort By LastModifiedDate)
GetFilePathOldest [1052] Get Oldest file path (Sort By LastModifiedDate)
GetFileDataAsString [1080] Get file text
GetFolderExistsFlag [1090] Get folder exist status
GetFileLockFlag [1091] Get lock status of file
GetFileListAsADONETDataTable [1100] Get file list as ADO.net DataTable
GetFolderListAsADONETDataTable [1110] Get folder list as ADO.net DataTable
Permission Specifies permission for file

Available Options (Use numeric value listed in bracket if you have to define expression on this property (for dynamic behavior).

Option Description
Default [0] Default
Read [1] Read
ReadWrite [2] ReadWrite
Execute [3] Execute
Full [4] Full
SearchString String or pattern you want to search in file content
ReplaceString New string you want to replace with
Encoding Encoding for target file (Only valid for Create new file, Change Encoding, Search Replace options)

Available Options (Use numeric value listed in bracket if you have to define expression on this property (for dynamic behavior).

Option Description
Default [0] Default
ASCII [1] ASCII
UTF8 [2] UTF-8
UTF16 [3] UTF-16 LE (i.e. Unicode Little Endian)
UTF32 [4] UTF-32
UTF8WithoutBOM [5] UTF-8 Without BOM
UTF32WithoutBOM [6] UTF-32 Without BOM
UTF7 [7] UTF-7
UTF7WithoutBOM [8] UTF-7 Without BOM
UTF16WithoutBOM [9] UTF-16 Without BOM
BigEndian [10] UTF-16 BE (i.e. Unicode Big Endian)
BigEndianWithoutBOM [11] UTF-16 BE Without BOM
SearchMode Search mode (e.g. Normal, Extended or Regular Expression). In extended mode search/replace you can specify whitespace characters such as \r or carriage return, \n for new line, \t for tab, \0 for NULL and \v for vertical tab. In Regular expression search you can spe

Available Options (Use numeric value listed in bracket if you have to define expression on this property (for dynamic behavior).

Option Description
Normal [0] Normal Search
Extended [1] Extended Search (\0, \r, \n, \t, \v allowed in search/replace string)
RegularExpression [2] Regular expression search (RegX pattern allowed in search/replace string)
SearchIgnoreCase By default search is case sensitive. Check this option if you want to do case case-insensitive search
SourcePathAccessMode Path access mode for file/folder

Available Options (Use numeric value listed in bracket if you have to define expression on this property (for dynamic behavior).

Option Description
Direct [0] Direct
Variable [1] Variable
Connection [2] Connection
SourcePathValue Source path or pattern
SourcePathConnection Connection name which holds source path
SourcePathVariable Variable name which holds source path/pattern
Recursive Specifies how to handle scanning of items
ResultVariable Variable which holds result of Get Property action or Get List As ADO.net table action. Variable has to be object datatype if you are storing list returned from Get action.
TargetPathAccessMode Path access mode for file/folder

Available Options (Use numeric value listed in bracket if you have to define expression on this property (for dynamic behavior).

Option Description
Direct [0] Direct
Variable [1] Variable
Connection [2] Connection
TargetPathValue Specifies target path
TargetPathConnection Specifies target path
TargetPathVariable Specifies target path
OverWriteOption Specifies how to handle overwrite action

Available Options (Use numeric value listed in bracket if you have to define expression on this property (for dynamic behavior).

Option Description
AlwaysOverwrite [0] AlwaysOverwrite
FailIfExists [1] FailIfExists
SkipIfExists [2] SkipIfExists
CreateMissingTargetFolder Specify this option if you want to create target folder automatically if its missing
ContinueOnError Continue on error if source file/folder is missing
ExcludeRegXPattern Regular expression pattern to exclude items from selection  (if you apply MyFile*.* filter for source path and then use ExcludeRegXPattern=(\.msi$|\.exe$) then it will include all files with matching name but exclude *.msi and *.exe
IncludeRegXPattern Regular expression pattern to include items from selection (if you apply MyFile*.* filter for source path and then use IncludeRegXPattern=(\.txt$|\.csv$) then it will include only txt and csv files with matching name pattern
TreatRegXForFullPath Treat include/exclude Regular Expression as Full Path expression rather than file name. If you have a use case of checking against Folder name pattern along with file name then use this option. When you check this option then using ^ in the front of expression will not work for File name pattern so instead of something like this ^MyFile\w+\.csv$ you need to change prefix check like this  [\\|/]MyFile\w+\.csv$ this way it works against full path check.
SortBy Property by which you want to sort result

Available Options (Use numeric value listed in bracket if you have to define expression on this property (for dynamic behavior).

Option Description
Size [0] File Size in Bytes
LastModifiedDate [1] File Last Modified DateTime
CreationDate [2] File Creation DateTime
AgeInDays [3] File Age in Days
LastEditInDays [4] Last Edit in Days
Content [5] File Content
Exists [6] File Exists Flag
FileCount [7] File Count
FolderPath [8] File Directory Path
FilePath [9] File Path
FileName [10] File Name
FileExtension [11] File Extension
FileEncoding [12] File Encoding
IsLocked [13] Is File Locked
SortDirection Sort order (e.g. Ascending or Descending)

Available Options (Use numeric value listed in bracket if you have to define expression on this property (for dynamic behavior).

Option Description
Asc [0] Asc
Desc [1] Desc
WhereClause Where clause expression to filter items. (e.g. Size>100 and Extension IN ('.txt','.csv') )
EnableSort Sort items by specified attribute
MaxItems Maximum items to return (e.g. TOP)
SkipItems Maximum items to skip (e.g. SKIP)
LoggingMode

Available Options (Use numeric value listed in bracket if you have to define expression on this property (for dynamic behavior).

Option Description
Normal [0] Normal
Medium [1] Medium
Detailed [2] Detailed
Debugging [3] Debugging
PrefixTimestamp When you enable this property it will prefix timestamp before Log messages.

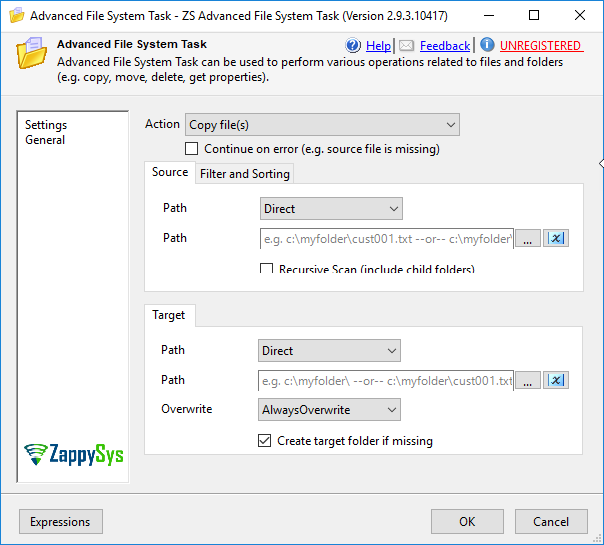

Settings UI

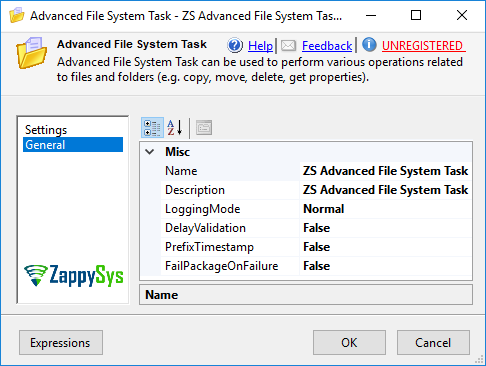

Advanced SSIS File System Task - Settings UI
Advanced SSIS File System Task - Settings UI
